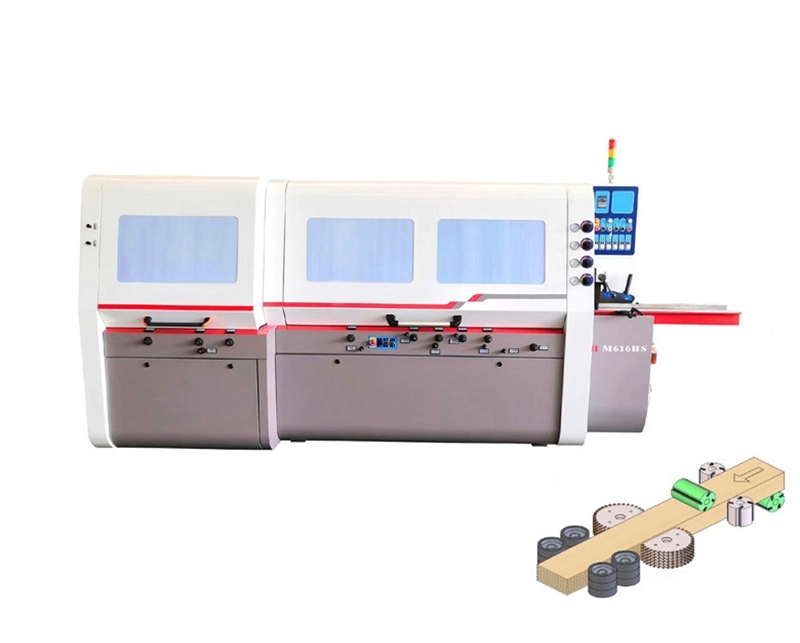

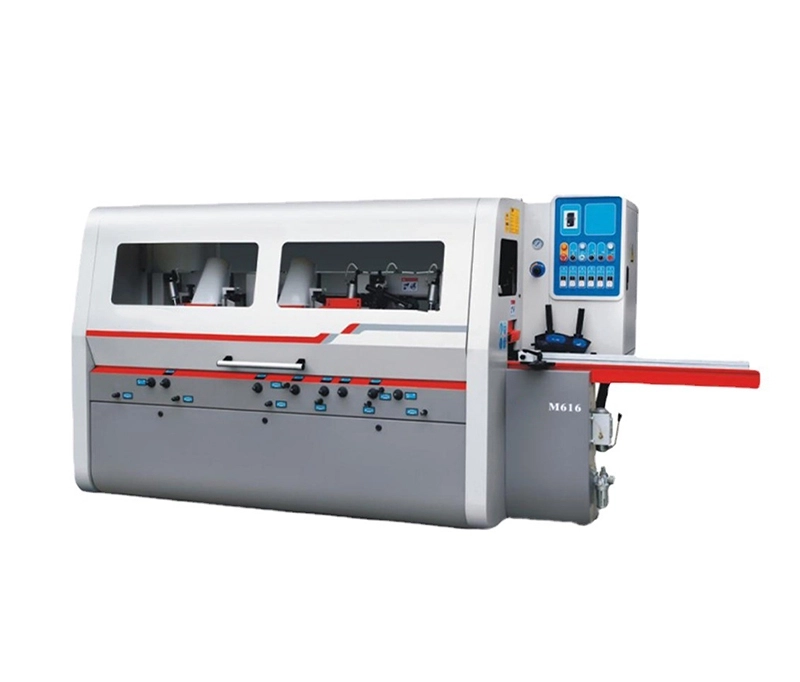

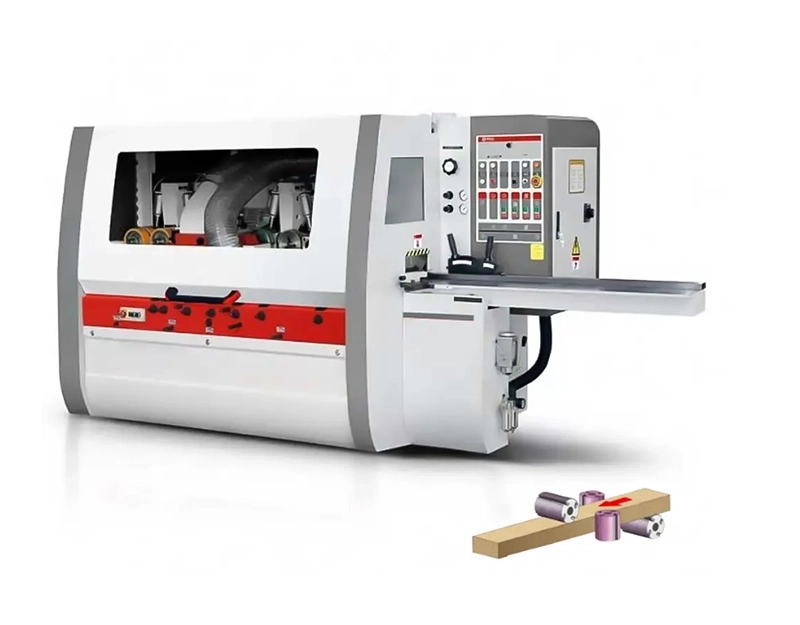

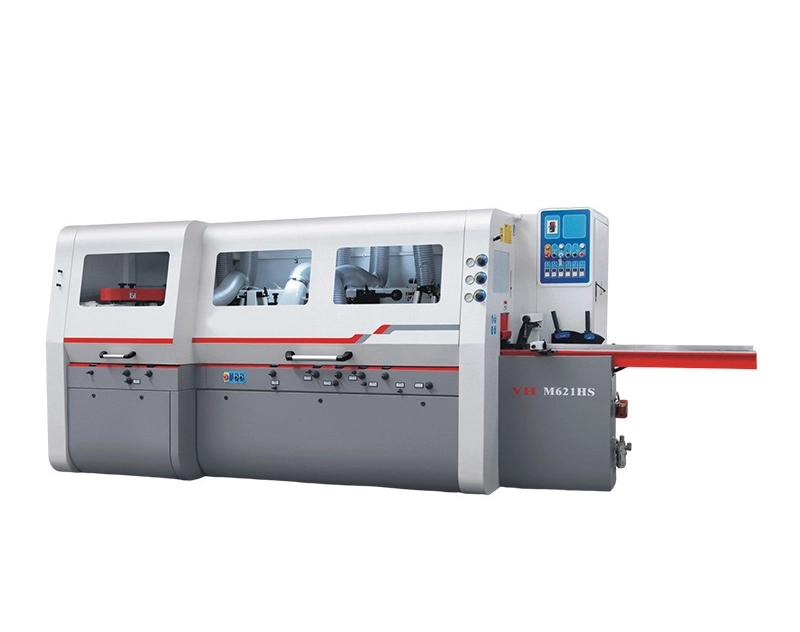

Automatic feeding four side 5 6 7 8 spindle 4 head solid wood shaper moulder planer for furniture panel strip
- Quantity
|
Working width |
25~160mm |
|
Working thickness |
8~120mm |
|
Front workbench length |
1500mm |
|
Feeding speed |
6~36m/min |
|
Main shaft |
40mm |
|
Spindle speed |
6500r/min |
|
Working pressure |
0.6Mpa |
|
First lower shaft motor power |
4kw |
|
Right vertical shaft motor power |
4kw |
|
Left vertical shaft motor power |
5.5kw |
|
First upper shaft motor power |
5.5kw |
|
Second lower shaft motor power |
4kw |
|
Cross beam lifting motor power |
0.75kw |
|
Feeding motor power |
4kw |
|
Total motor power |
31.75kw |
|
First lower axis tool diameter |
125mm |
|
Right vertical axis tool diameter |
125~160mm |
|
Left vertical axis tool diameter |
125~160mm |
|
First upper axis tool diameter |
125~160mm |
|
Second upper axis tool diameter |
125~160mm |
|
Second lower axis tool diameter |
125~180mm |
|
Feeding roller diameter |
140mm |
|
Dust collector pice diameter |
140mm |
|
Dimension |
3690*1400*1680mm |
|
Weight |
2480kg |
