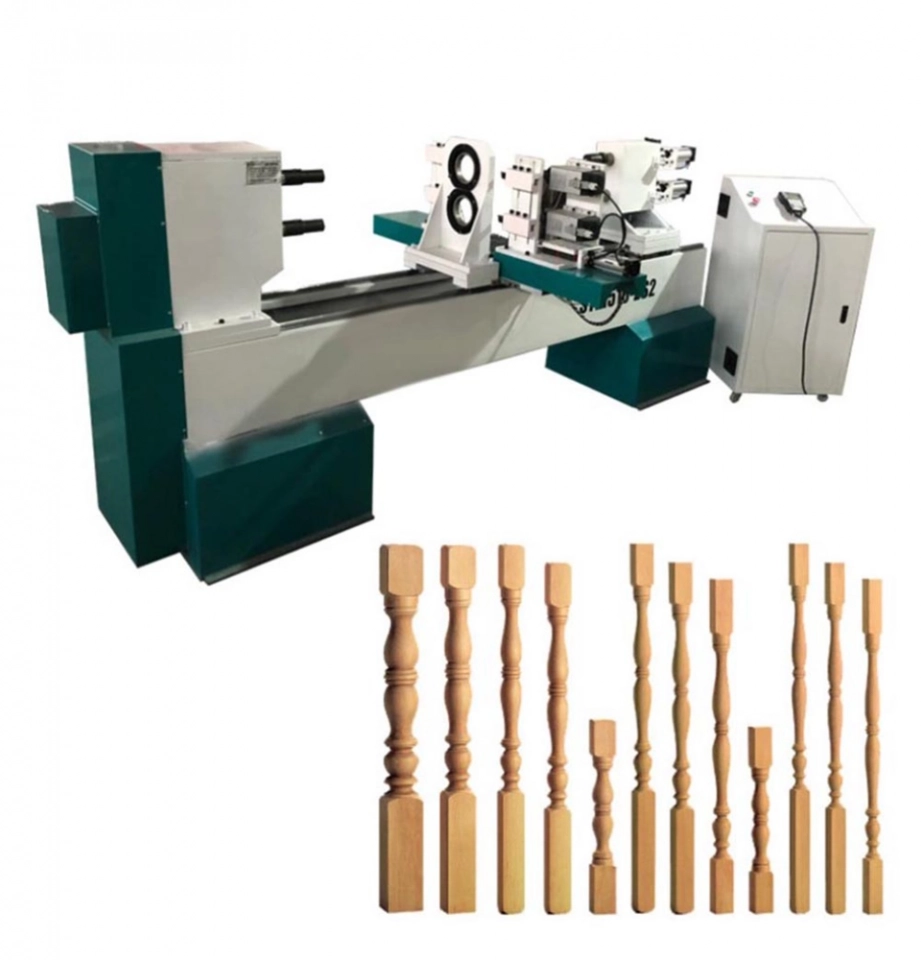

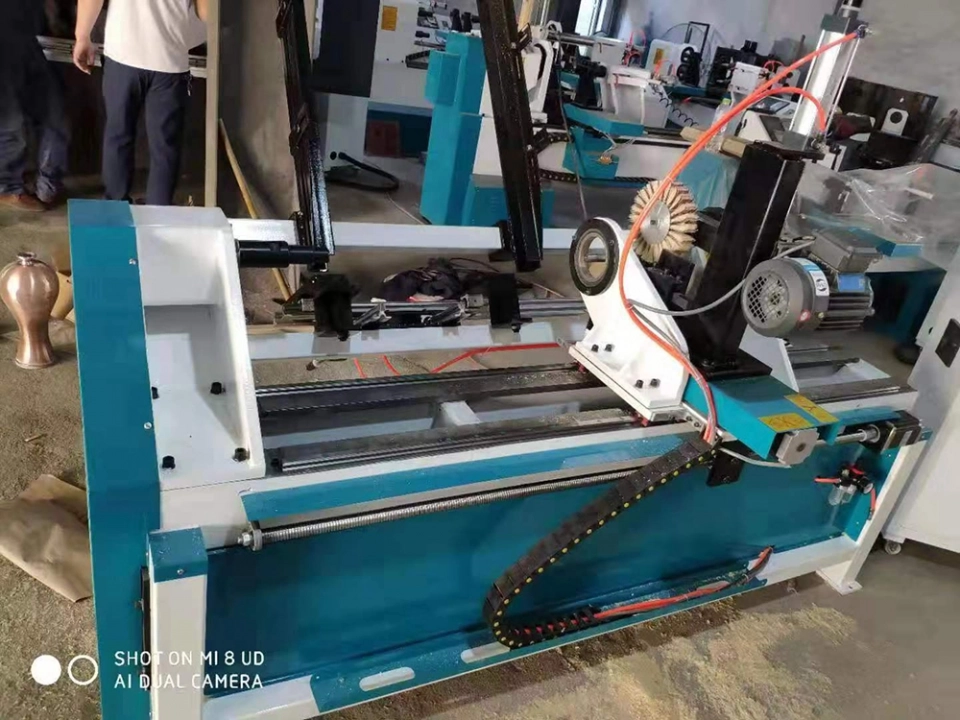

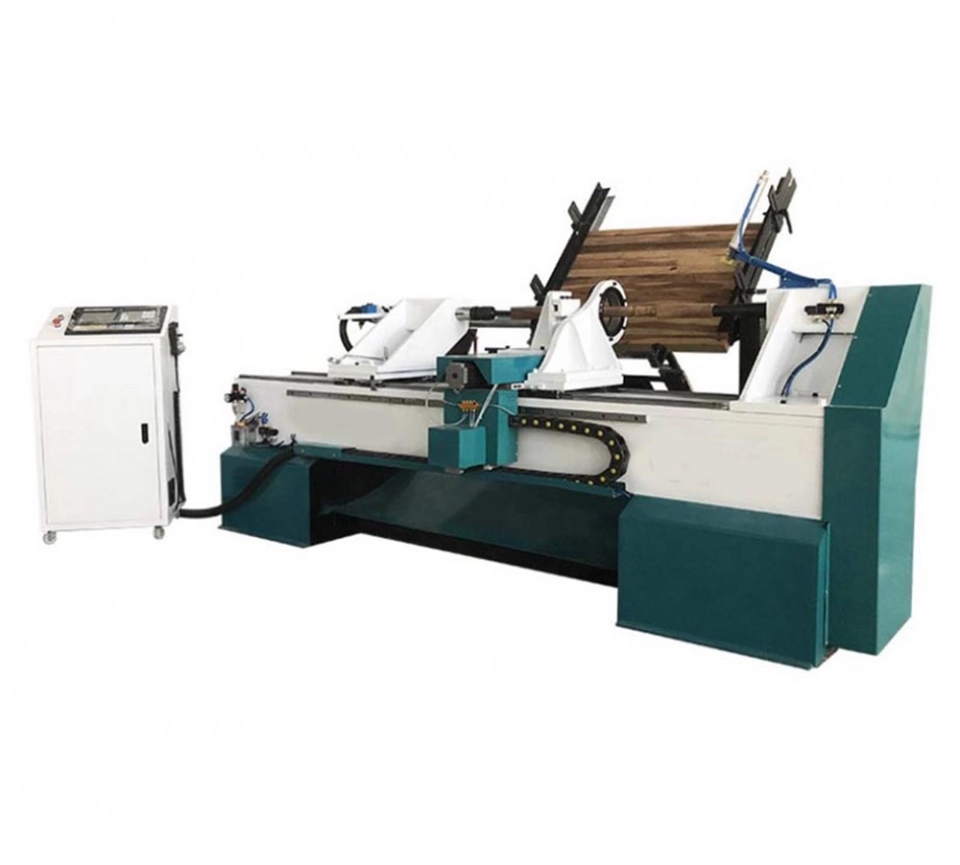

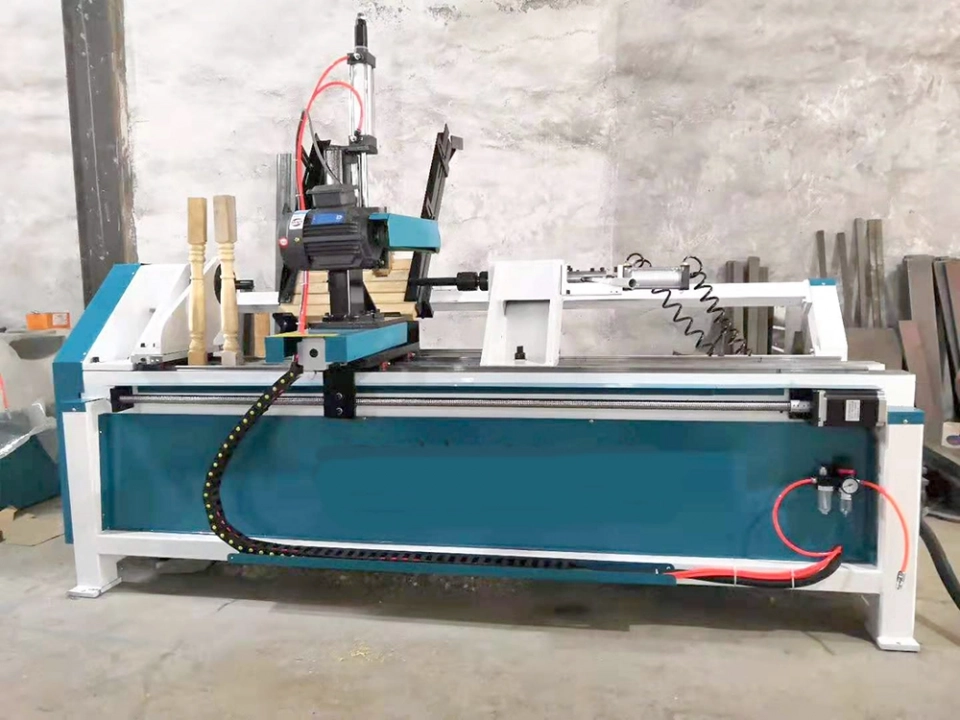

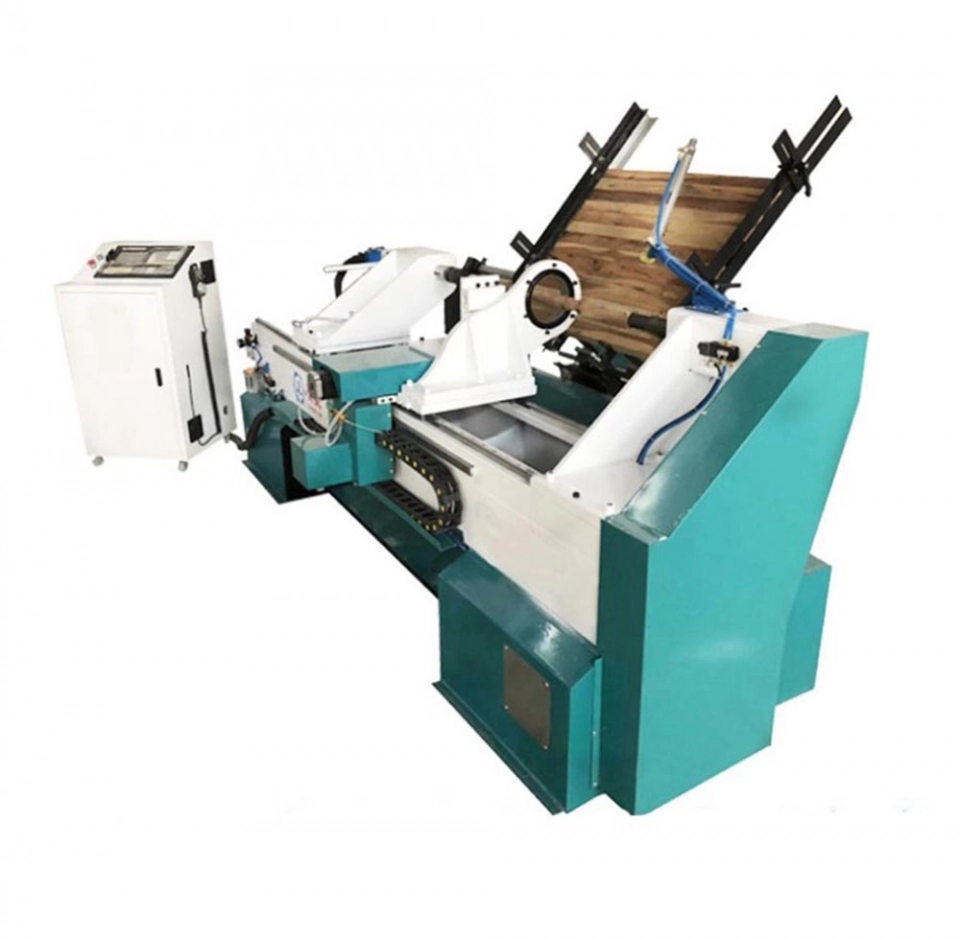

Auto feeding CNC wood turning lathe
- Quantity
|
Model |
1220 automatic feeding CNC woodworking lathe with polishing function |
|
Application |
Solid wood furniture factory, stair processing factory, solid wood handicraft factory, etc. |
|
Max. Process length |
1200MM |
|
Max. Process diameter |
200MM |
|
Control System |
Magic control system |
|
Frequency converter |
BESIDE |
|
driver |
Jiemei Kang 86 drive + high torque stepper motor |
|
Bed structure |
Thickened steel pipe welded bed, tailstock headstock cast iron |
|
transfer method |
High precision TBI ball screw |
|
Rail drive |
25 linear guide 25 flange slider |
|
Main motor |
4kw pure copper three-phase asynchronous motor |
|
Spindle speed |
2800 r/min |
|
Voltage |
380V, 50Hz, 3 phase |
Can be used for bed column, bed head, sofa legs, chair legs, table legs, hat rack bar, table legs, wooden stool, wooden vase, cylindrical, conical, spherical arc, and other complex shape of the revolving wooden wood products or semi-finished products.
