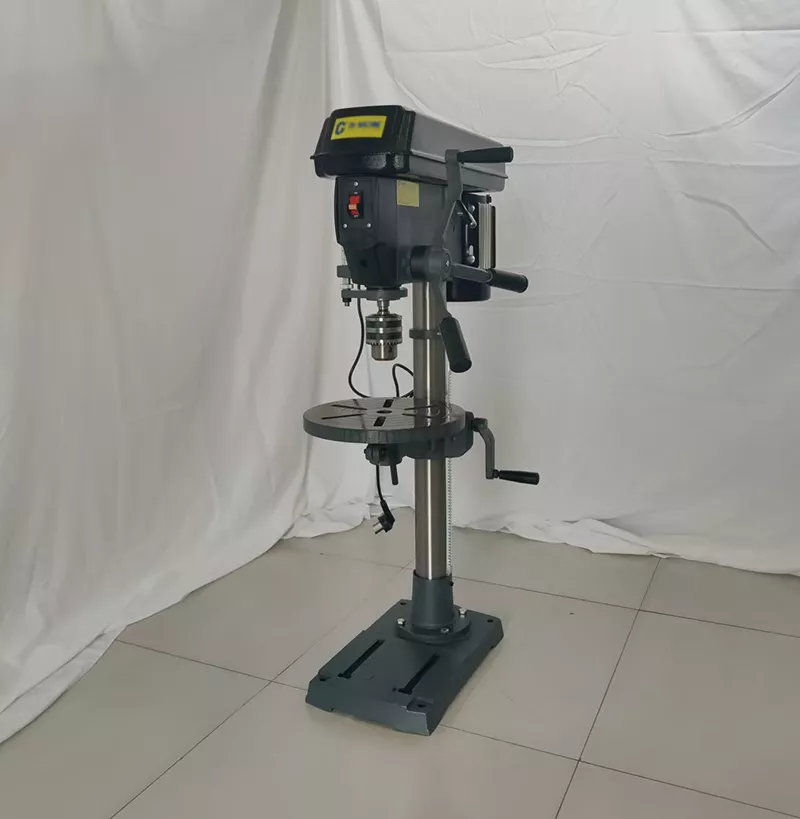

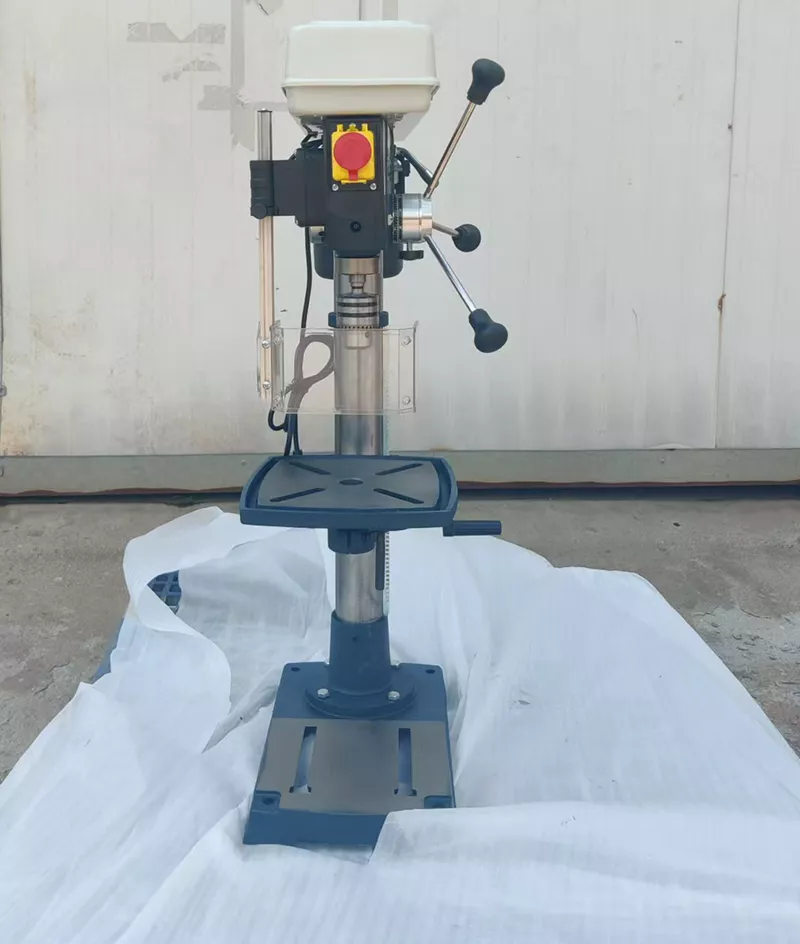

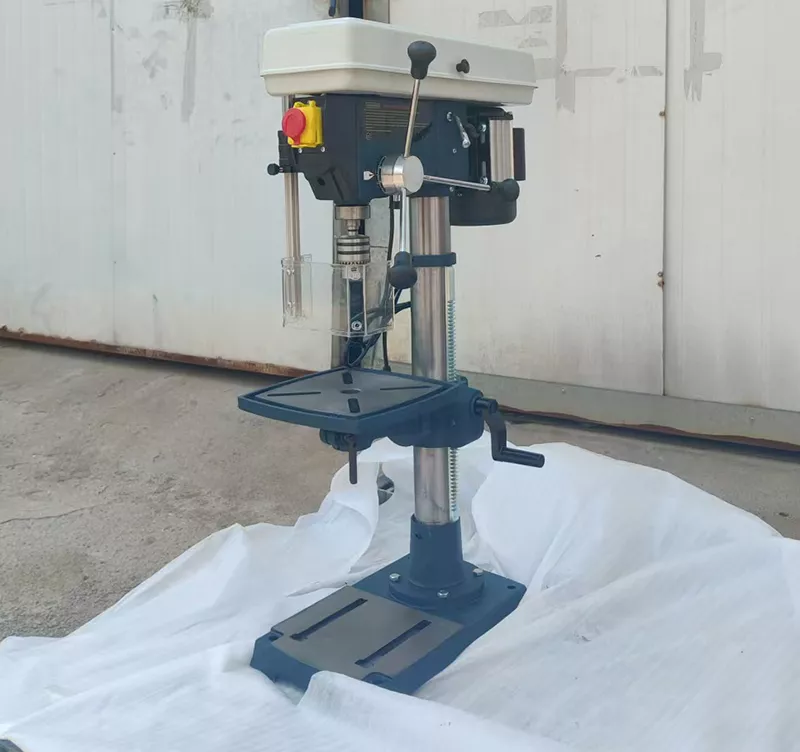

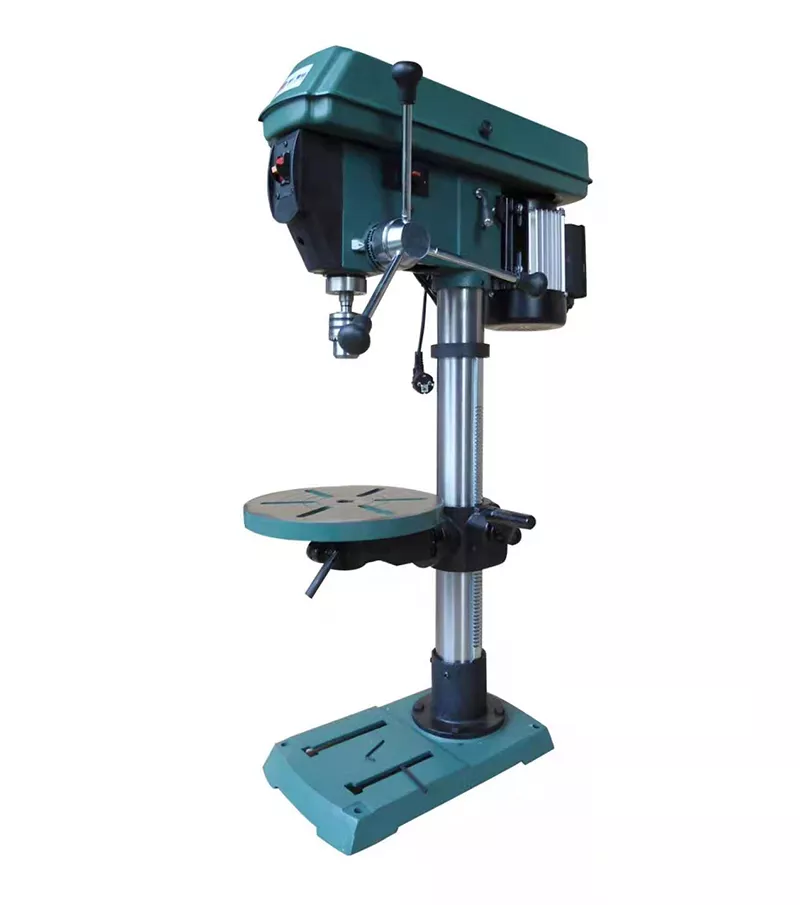

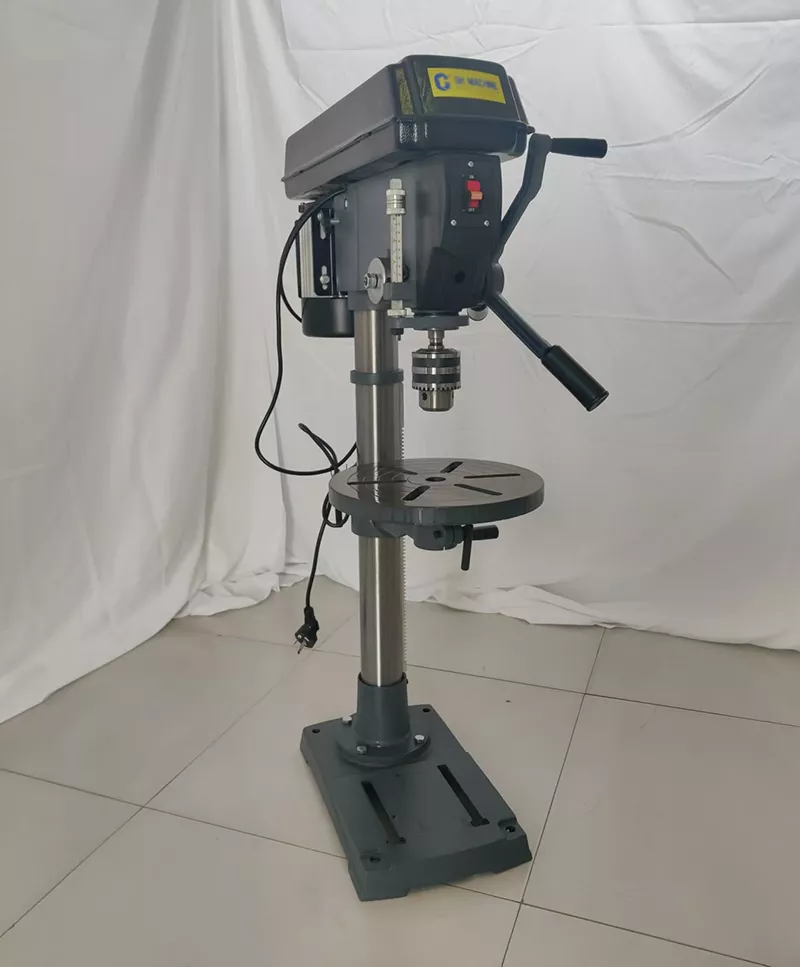

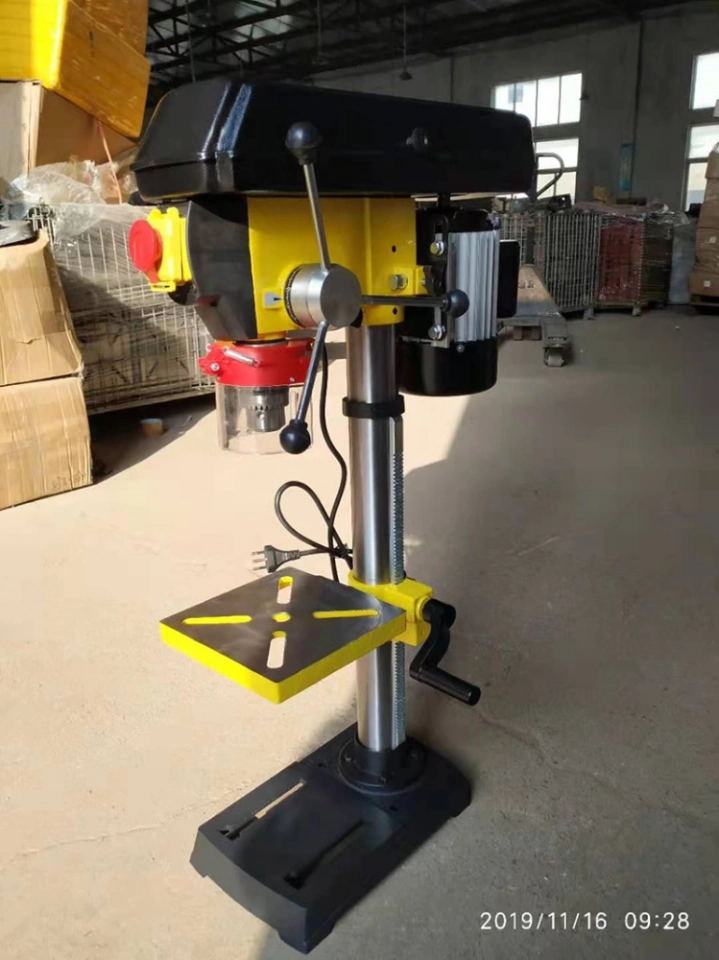

8inch/10inch/12inch/13inch 13/16mm bench type table drilling machine drill press for drilling holes
- Quantity
8inch/10inch/12inch/13inch 13/16mm bench type table drilling machine drill press for drilling holes
|
Model |
8inch |
10inch |
12inch |
13inch |
|
Motor power |
180/250/500W |
250/375W |
375/500W |
375W |
|
Max. Drilling capatity (mm) |
13/16 |
13/16 |
16 |
16 |
|
No. Of speed |
5 |
5/12 |
12/variable |
12/16 |
|
Speed range (RPM) |
500~2500 /620~3100 |
460~2480/570~3050 /230~2470/280~3000 |
230~2470/280~3000 /450~2500/530~3100 |
180~274/220~3480 /250~3100/260~4220 |
|
Spindle travel (mm) |
50 |
60/80 |
80 |
80 |
|
Taper |
JT33/B16 |
JT33/B16 |
JT33/B16 |
MT2 |
|
Chunk capacity (mm) |
13/16 |
16 |
16 |
16 |
|
Overall height (mm) |
570/580/600 |
720/840/1600 |
868/1565/940 |
1065/1610 |
8inch/10inch/12inch/13inch 13/16mm bench type table drilling machine drill press for drilling holes
All cast iron heavy duty design

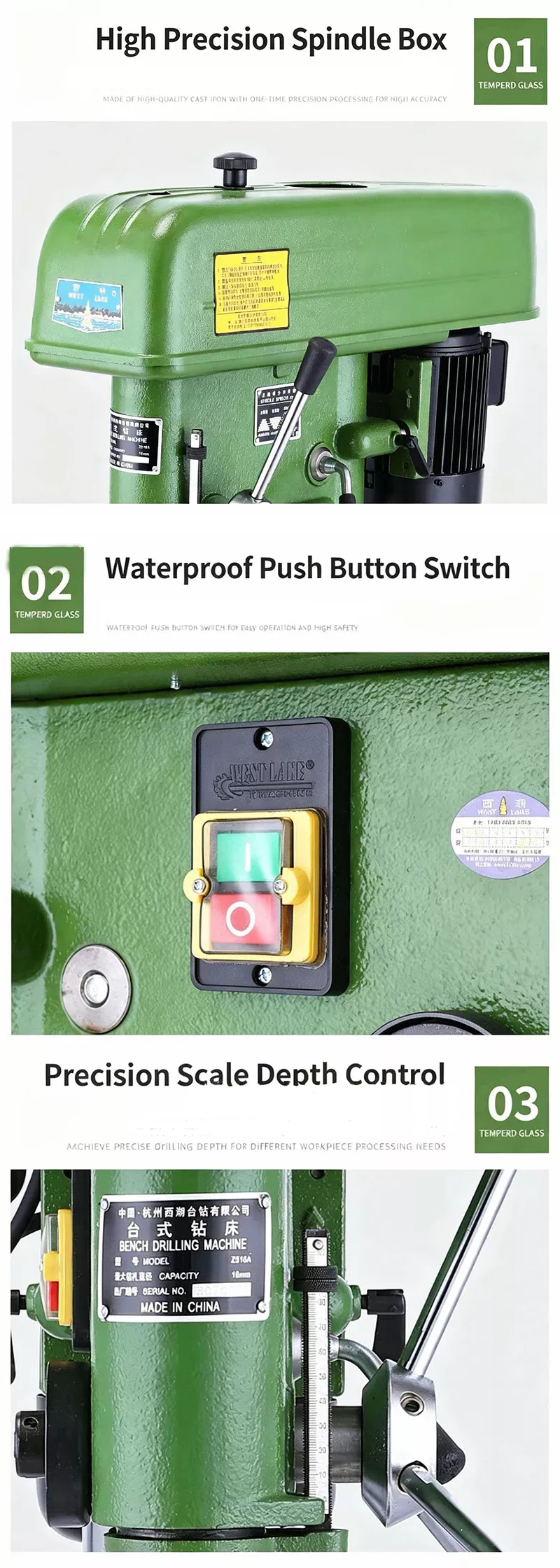

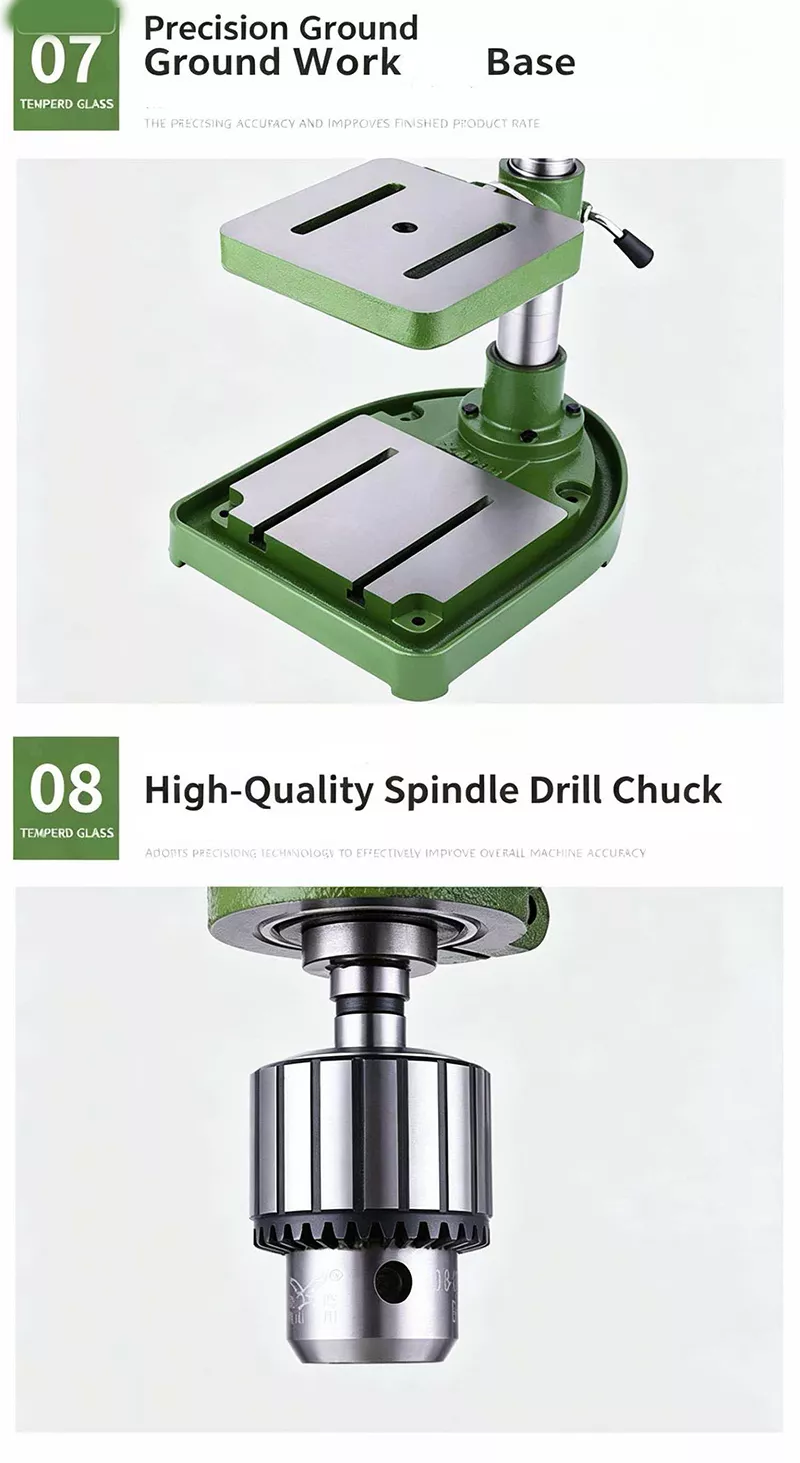

Cast iron headstock + tables + handle
Laser, LED working light, digital readout, new type chuck guard with micro switch ect. available as optional
