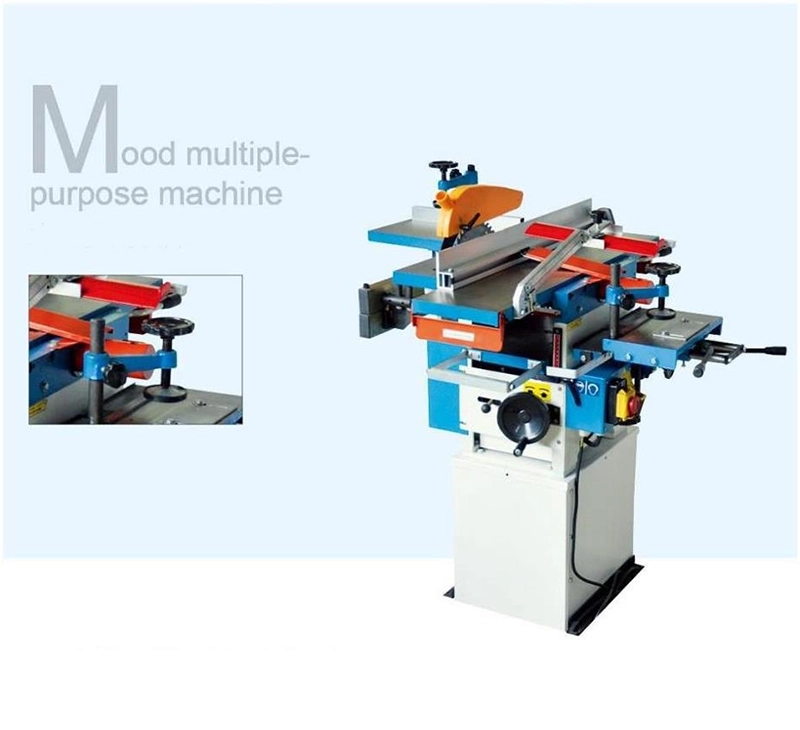

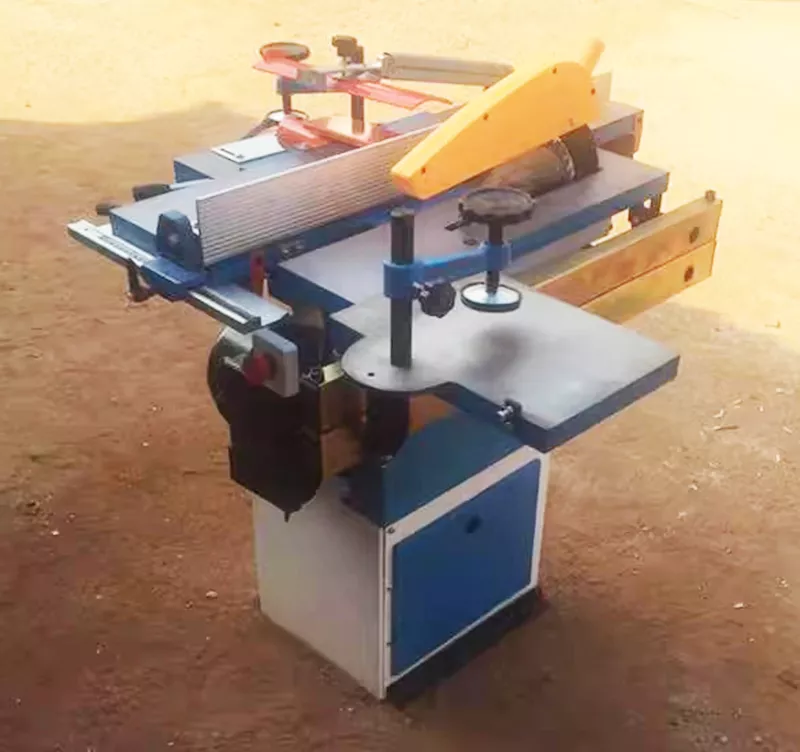

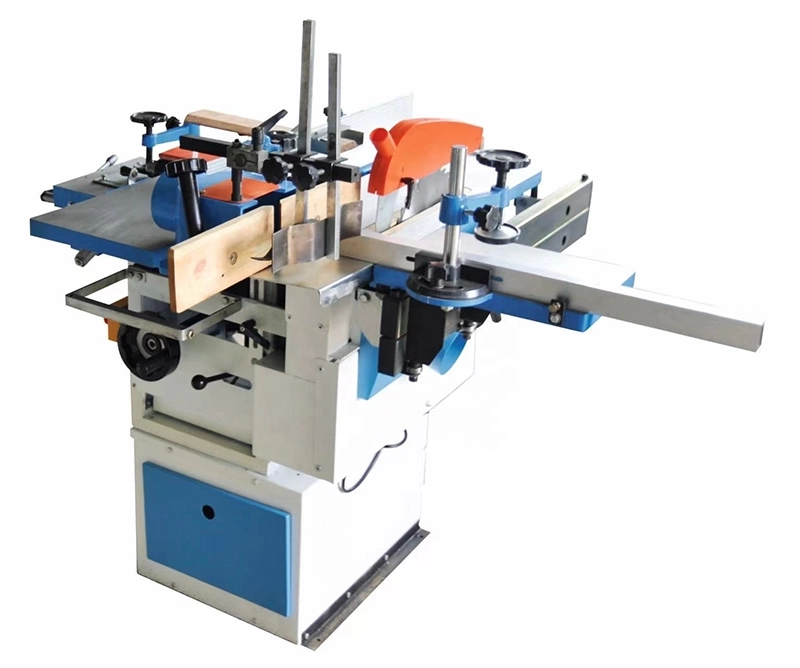

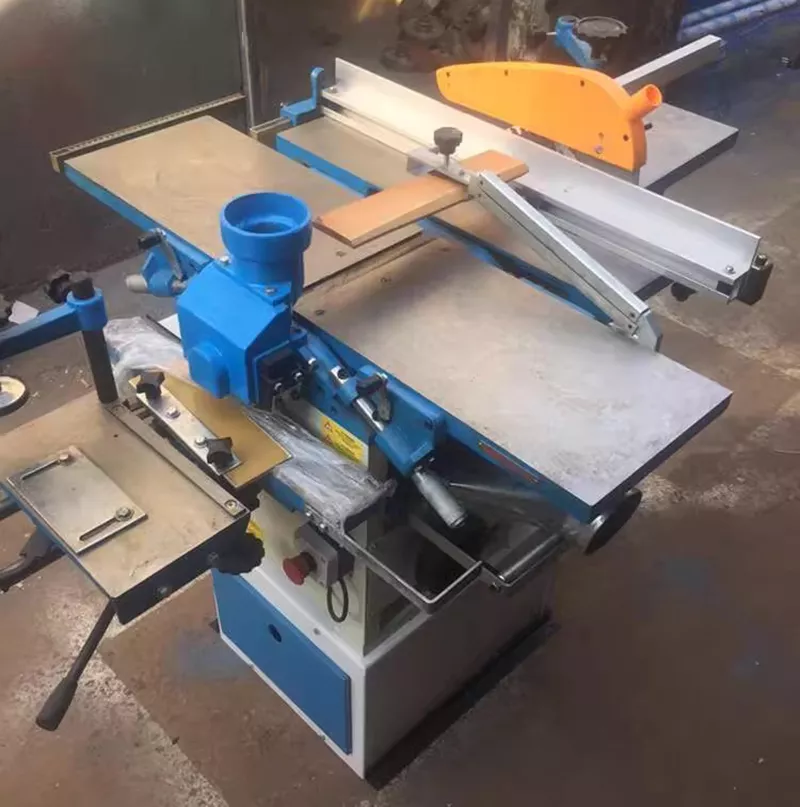

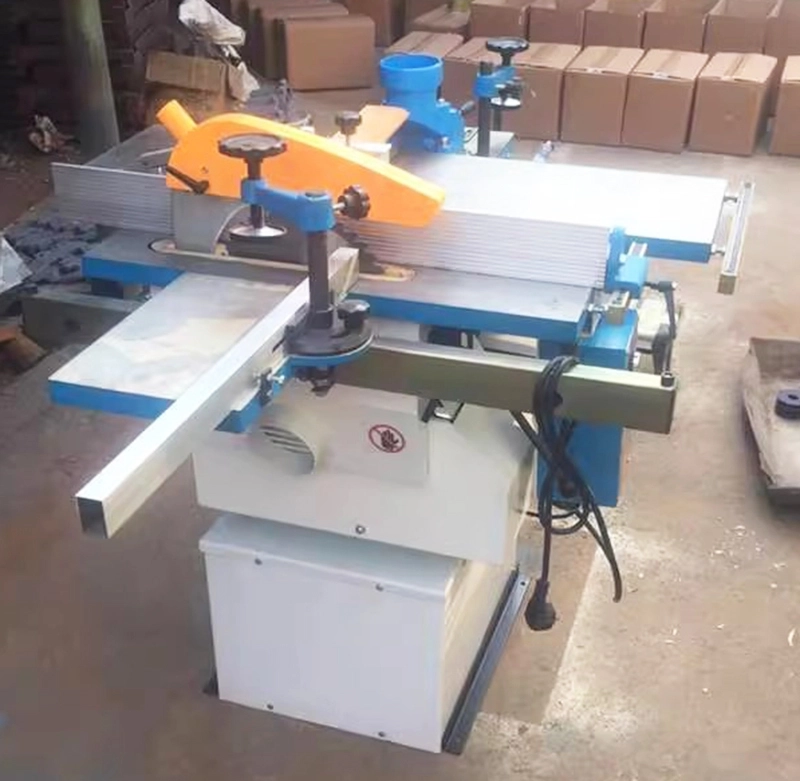

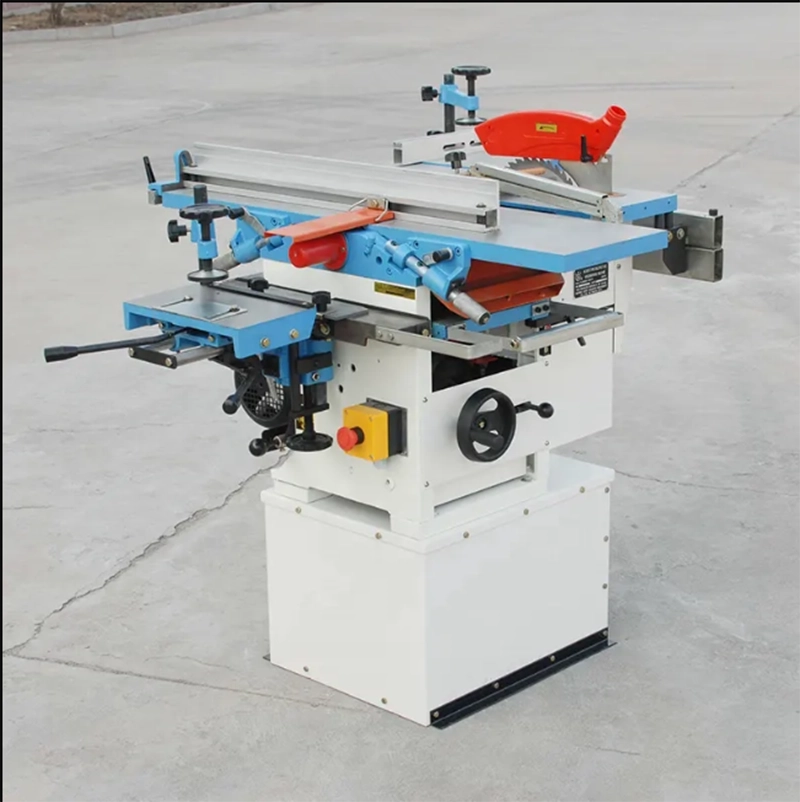

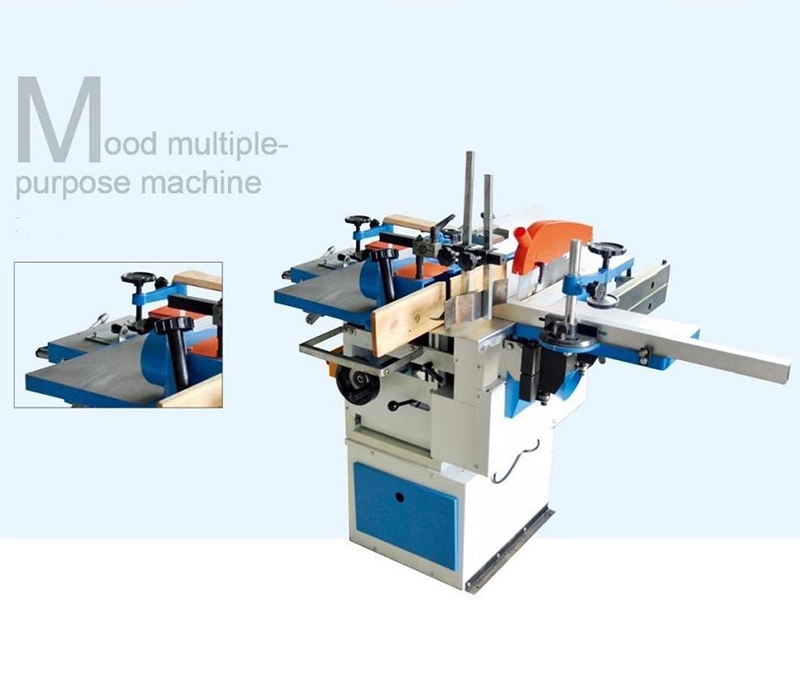

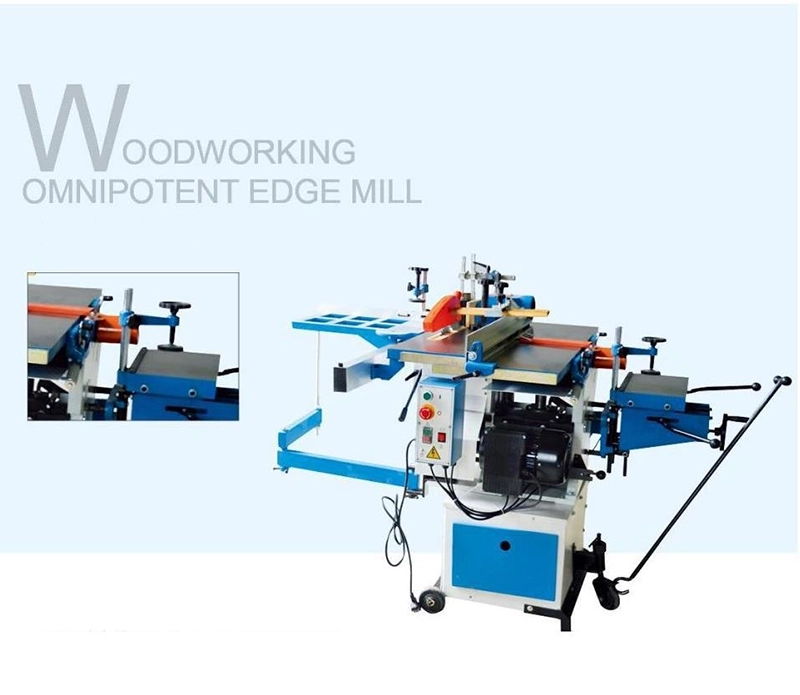

5 Functions Woodworking wood combined universal table saw mortiser planer moulder tenoner shaper driller machine
|
Surface planer |

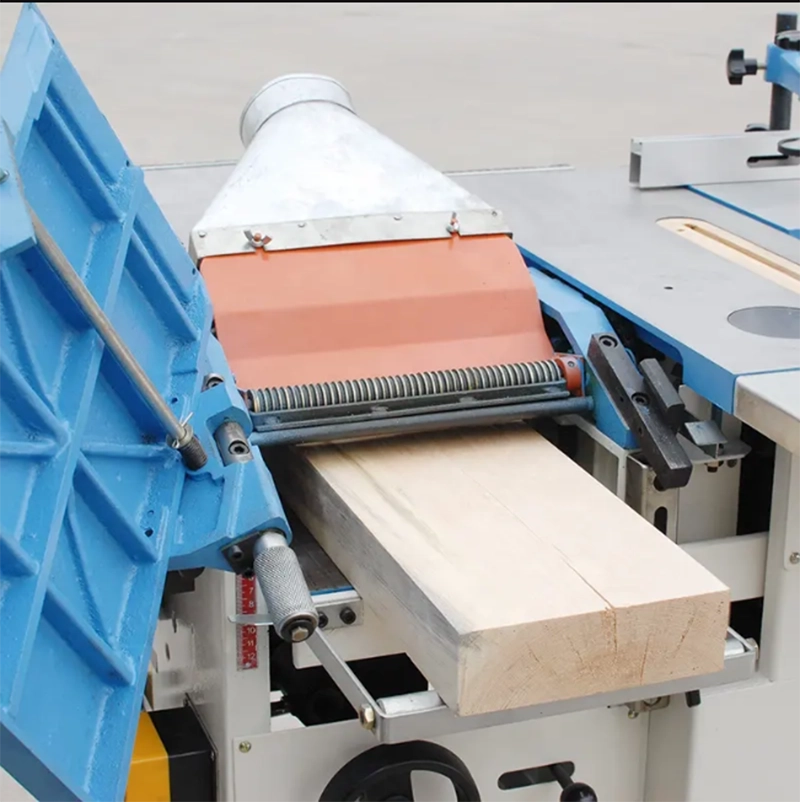

Thickness planer |
|
Max. planing width： 250mm |
Max. planing width： 250mm |
|
Arbor dia： 72mm |
Planing thickness: 6~120mm |
|
Arbor speed： 4000r /min |
Min. Processing length :150mm |
|
Knives specification：260×30×3mm |
Feeding speed: 6.5m/min |
|
Total length of tables：960mm |
|
|
Max. removal:3mm |
Milling |
|
Incline of surfacing guide 0~45° |
Milling cutter dia: 70~104mm |
|
Circular saw |
Milling thickness:6~40mm |
|
Blade specification: 250×3.2×30mm |
Max. milling width: 40mm |
|
Max. sawing thickness: 70mm |
Mill arbor : Φ20mm/30mm |
|
Sawing arbor speed: 3500r /min |
|
|
Max. crosscut width: 300mm |
Drilling |
|
Indexing ruler angle: ±45° |
Max. drilling dia:12mm |
|
|
Max. drilling depth:90mm |
|
Motor power : 1.5/2.2kw |
|
|
Dimension : 106*150*108cm |
|
|
Net weight:: 200kg |
|
multi use woodworking machine Hot sale Woodworking universal machine combined planer thicknesser

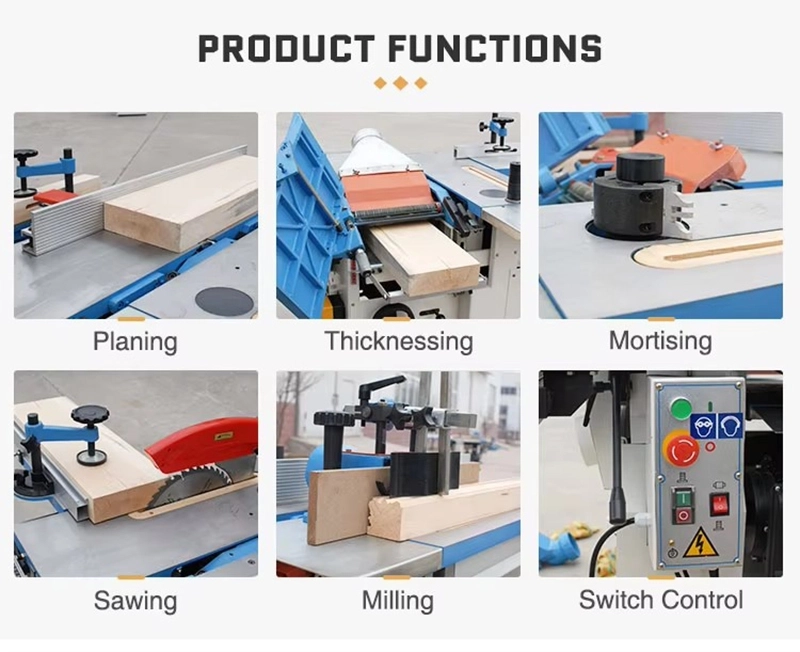

Having five functions: 1. Saw 2. Milling 3. Mortiser 4. Surface planer 5. Thickness
