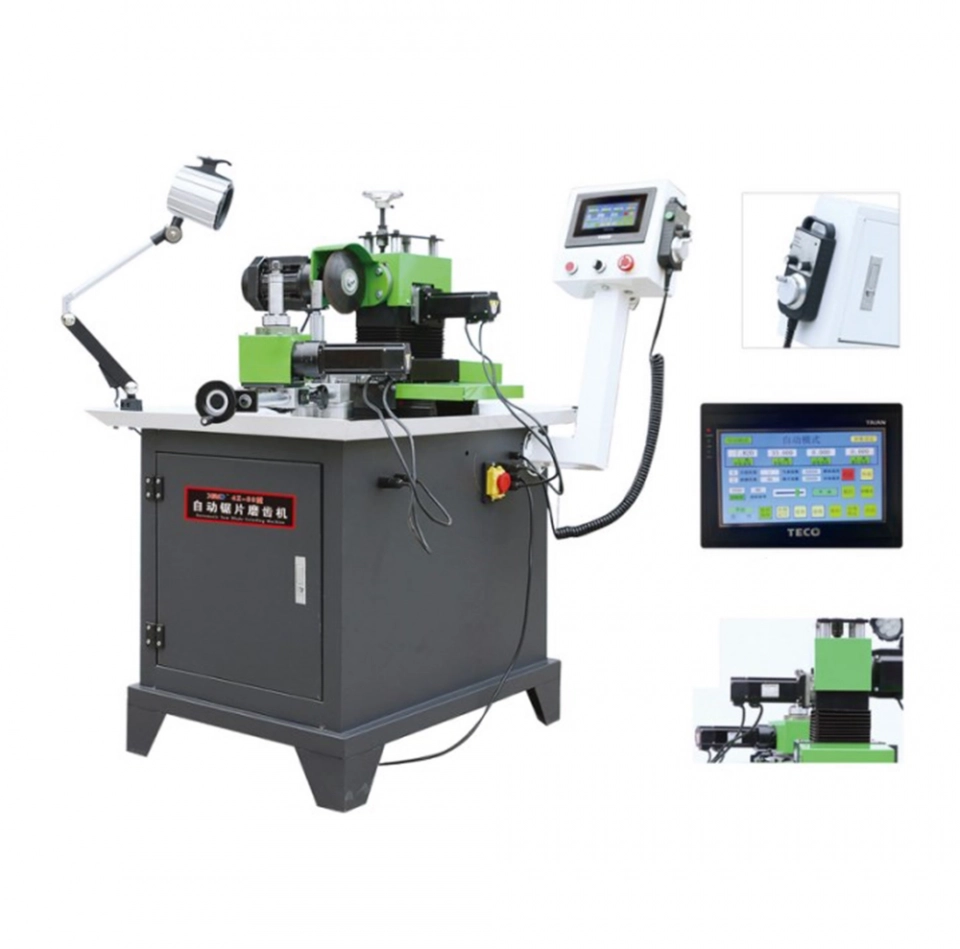

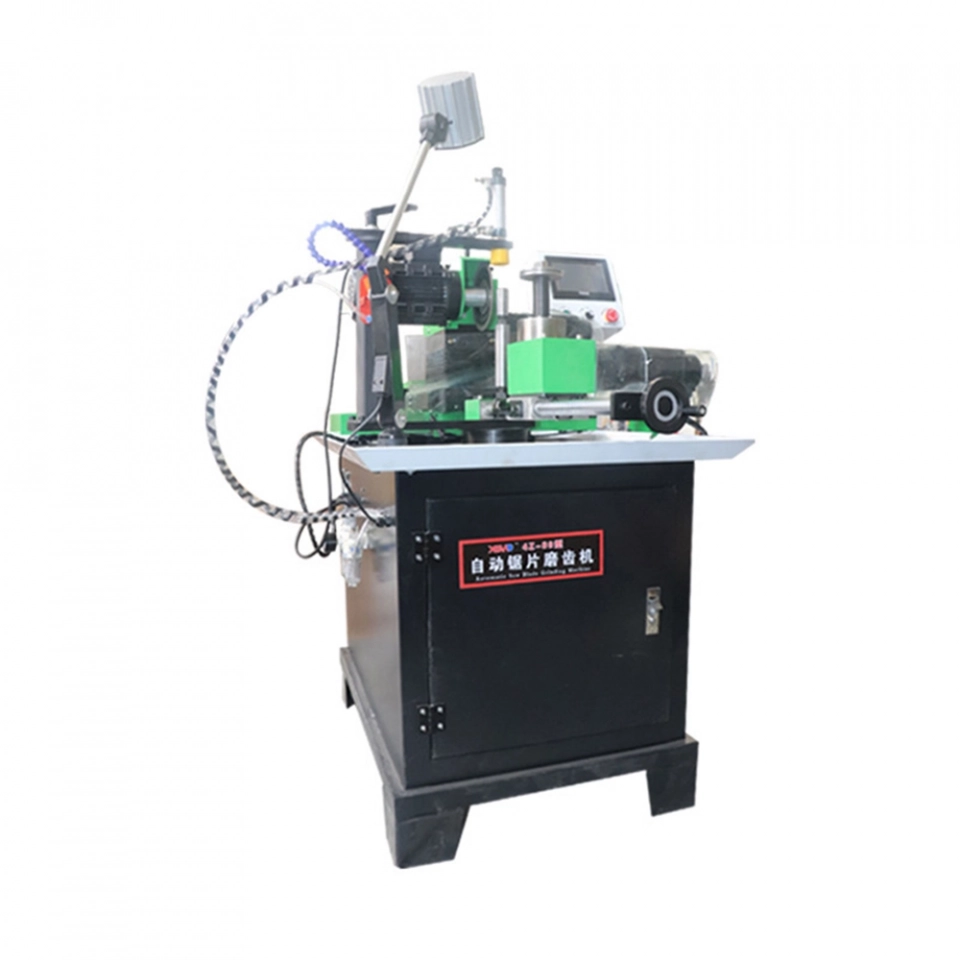

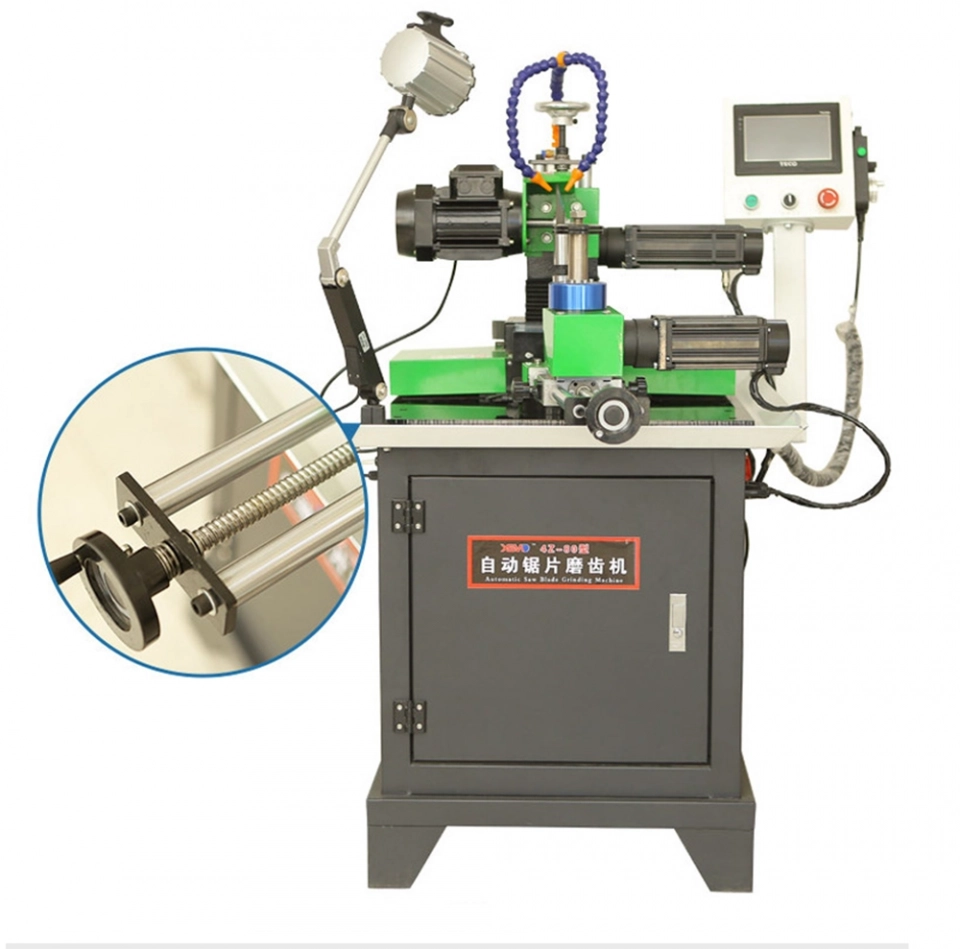

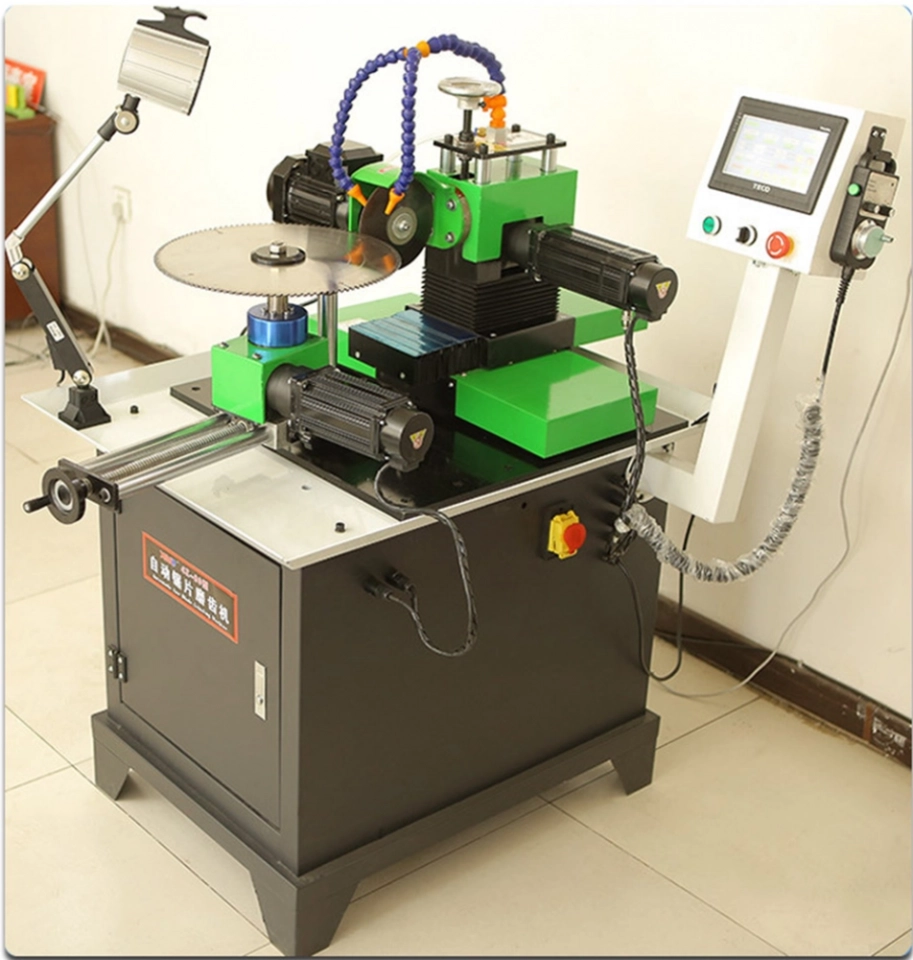

4Z-80 CNC TCT Carbide Circular Saw Blade Sharpening grinding Machine
- Quantity
4Z-80 CNC TCT Carbide Circular Saw Blade Sharpening grinding Machine
|
Blade diameter |
100~800mm |
Grinding wheel speed |
2850r/min |
|
Knife Tool specifications |
Min diameter :40mm Max. Thickness: 3mm |
Grinding wheel motor power |
1000W |
|
gear speed |
0~100teeth/min |
A shaft motorpower |
1000W |
|
Alloy grinding wheel specifications |
150*32*10mm |
Y-axis motor power |
100W |
|
Z-axis motor power |
1000W |
Dimension |
1070*930*1290mm |
|
x-axis motor power |
100W |
weight |
245kg |
|
Application sawtooth shape |
Flat teeth, left and right tooth profiles, three left and one right tooth profiles, three right and one left tooth profiles, left and right tooth profiles, right, left, left and left flat tooth profiles, left and right flat tooth profiles, trapezoidal flat tooth profile, can complete the front and rear movements at one time Corner grinding. |
||

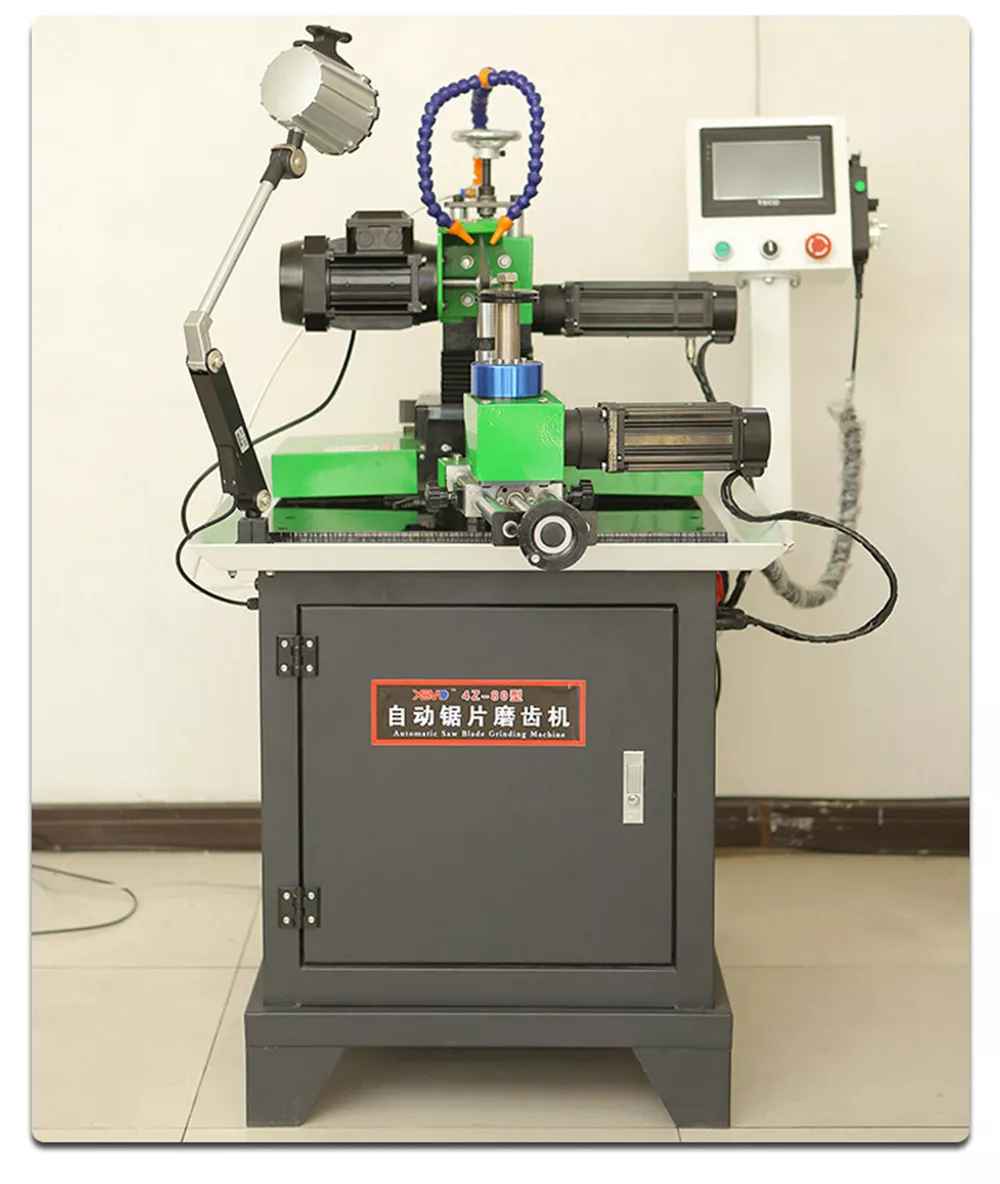

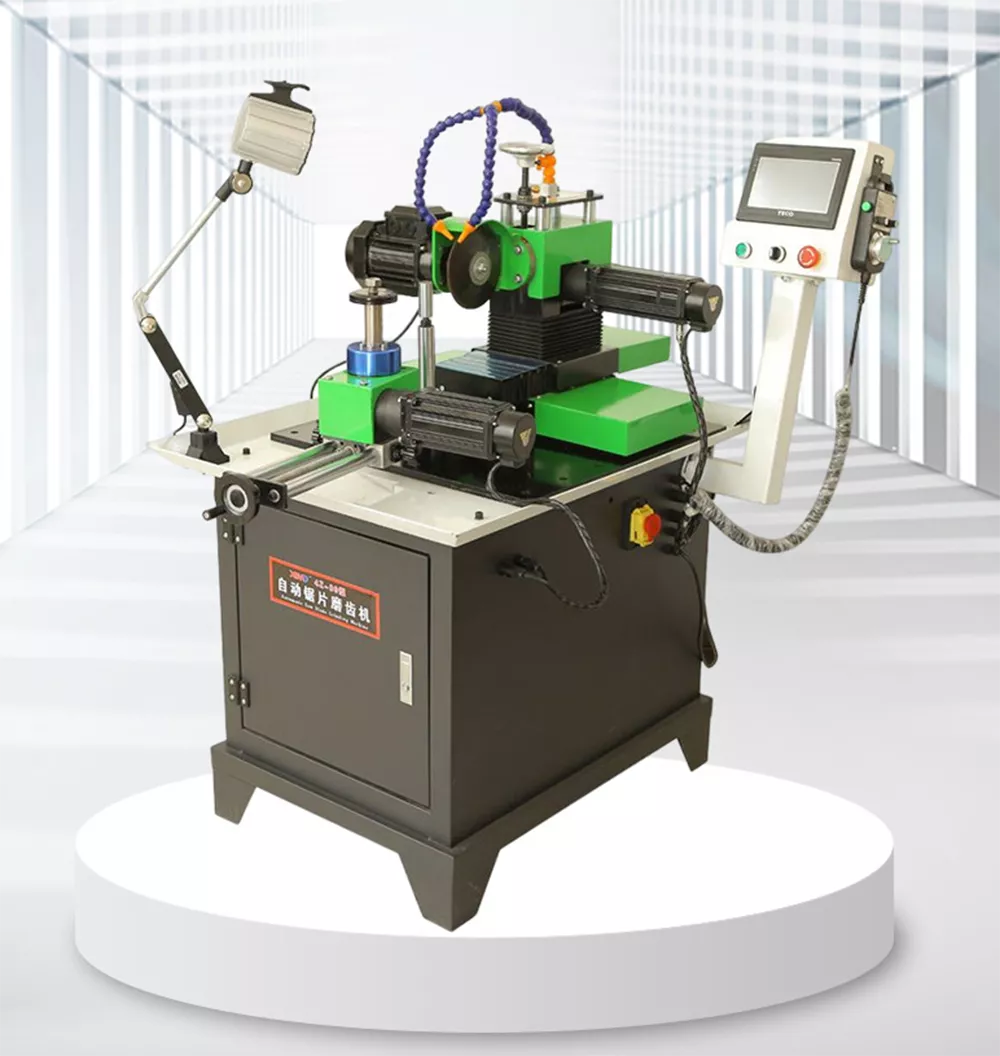

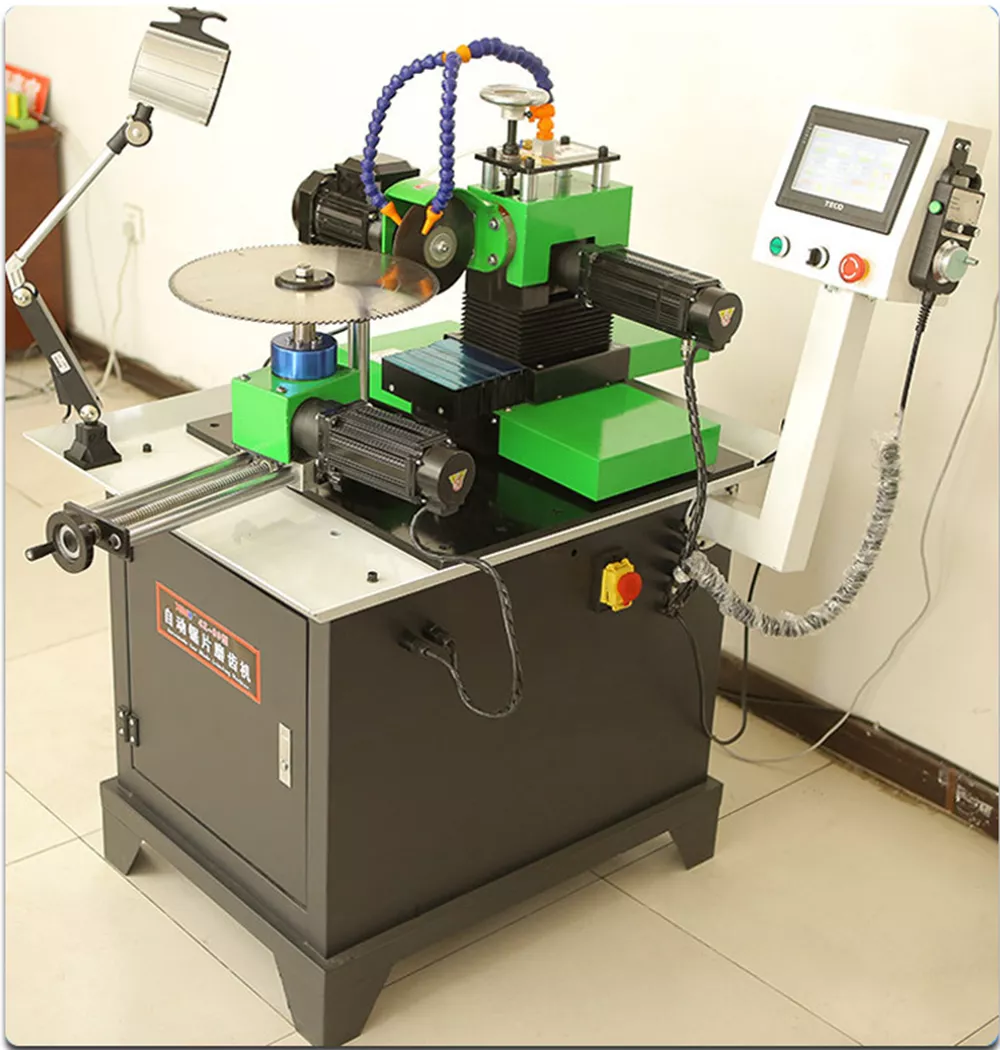

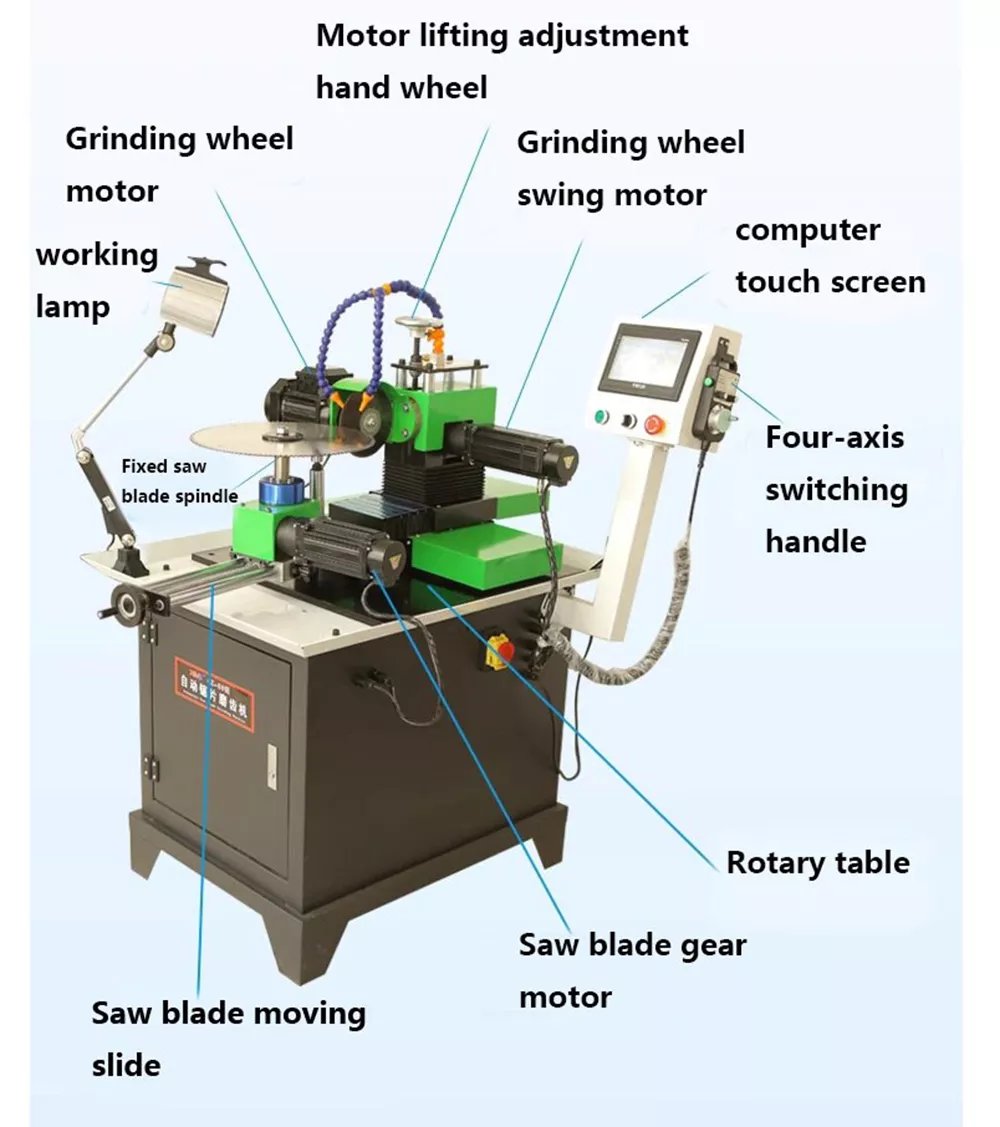

4Z-80 CNC TCT Carbide Circular Saw Blade Sharpening grinding Machine
This machine is an automatic tooth grinding machine designed according to the grinding of alloy saw blade. It is a supporting equipment specially developed by our factory for multi-blade saws, push-table saws and aluminum profiles.
