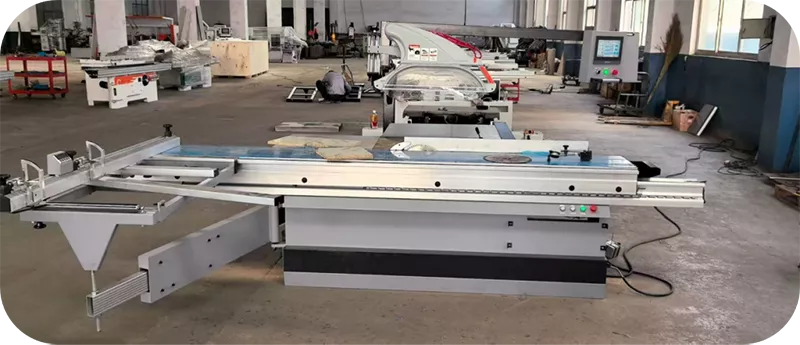

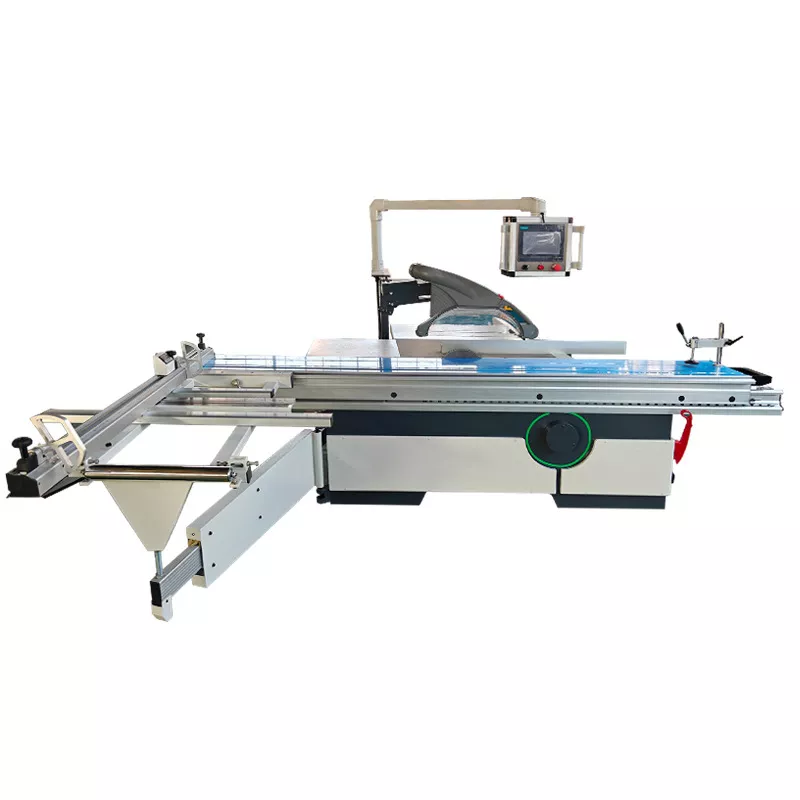

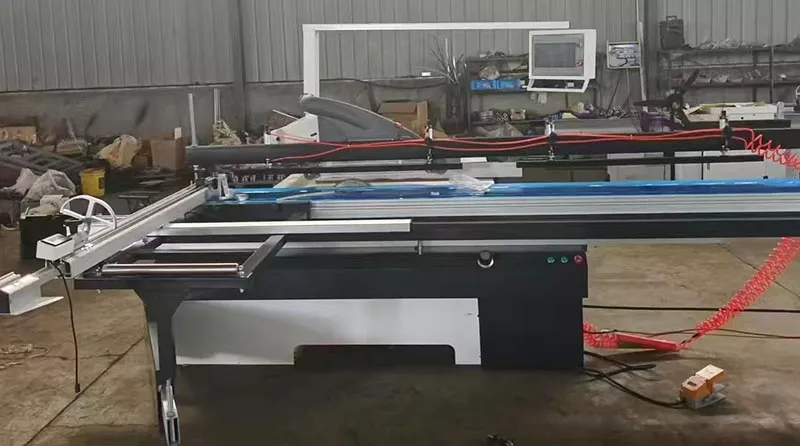

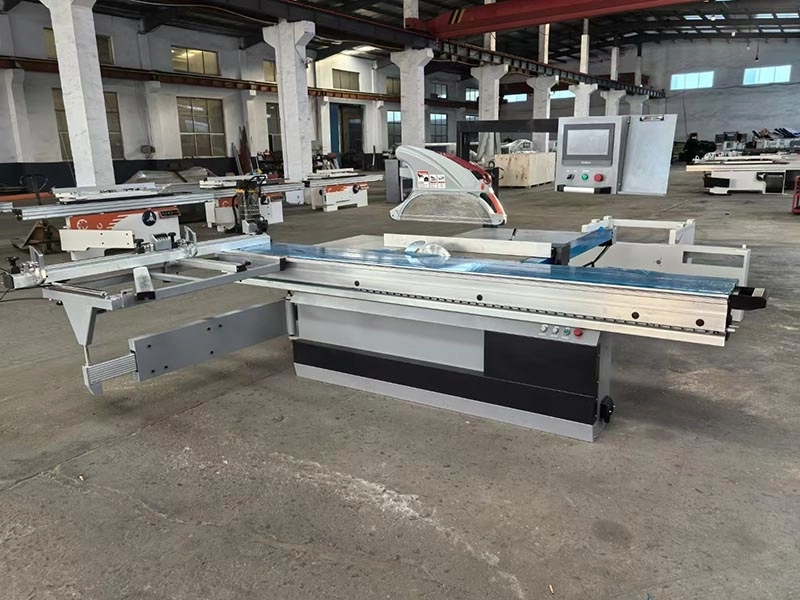

3200mm Woodworking CNC Positioning Automatic Cutting Panel Saw Auto Feeding Table Saw Machine
- Quantity
3200mm Woodworking CNC Positioning Automatic Cutting Panel Saw Auto Feeding Table Saw Machine
|
Model |
CNC-6132S |
|
Sliding table dimension |
3200*430mm |
|
Main saw diameter |
400mm |
|
Main saw blade diameter |
450mm |
|
Main saw bore diameter |
30mm |
|
Max. Cutting height with bade at 90 |
80/130mm( blade 300/400mm) |
|
Max. Cutting height with bade at 45 |
50/90mm( blade 300/400mm) |
|
Main motor power |
5.5kw |
|
Main blade speed |
4000~6000 r/min |
|
Scribing saw blade diameter |
120mm |
|
Scribing saw bore diameter |
20mm |
|
Scribing saw motor power |
1.1kw |
|
Scribing blade speed |
8000RPM |
|
Max. Cutting width |
1250mm |
|
Max.cutting length |
3100mm |
|
Blade tilting angle |
0~45degree |
|
Main motor lifting power |
55W |
|
Angle motor power |
25W |
|
Dimension |
3250*3630*830mm |
|
Weight |
980kg |

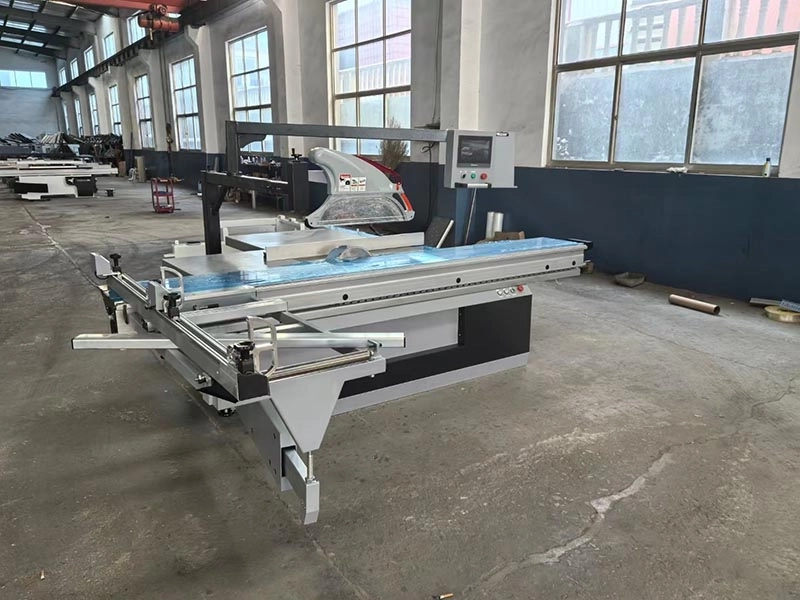

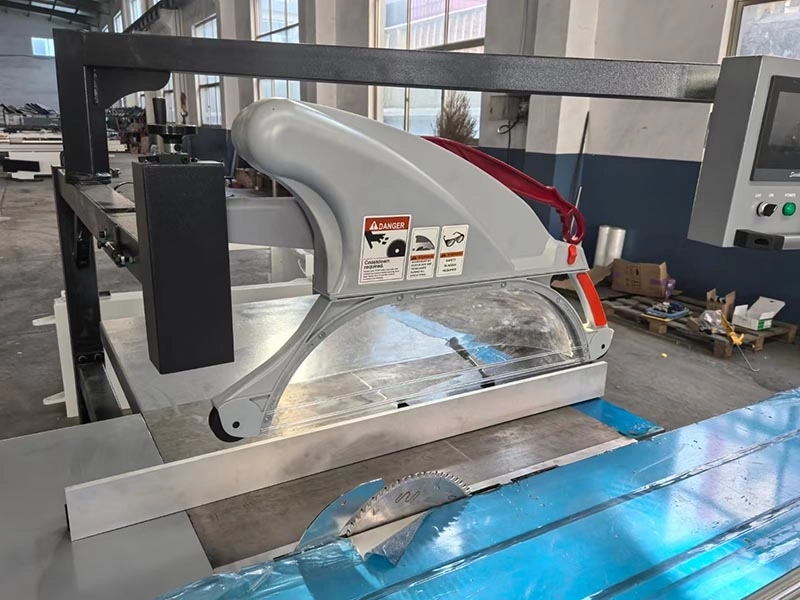

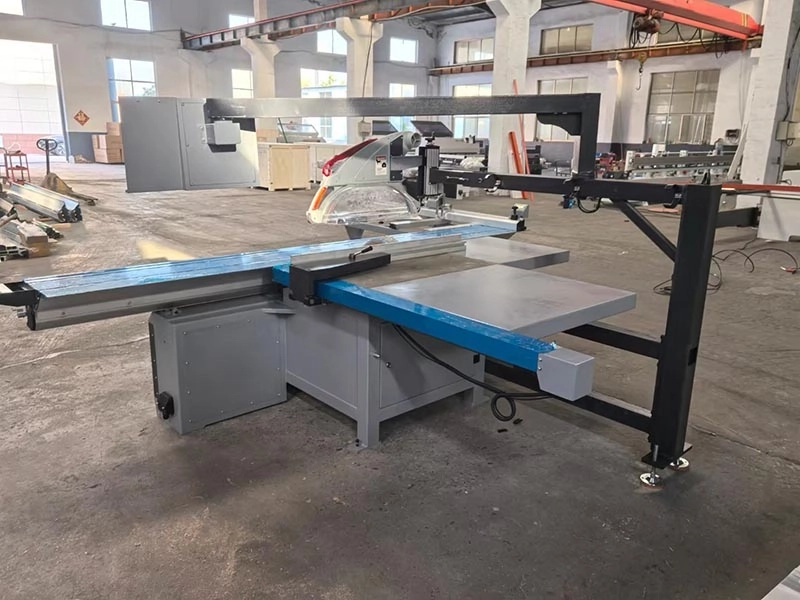

3200mm Woodworking CNC Positioning Automatic Cutting Panel Saw Auto Feeding Table Saw Machine

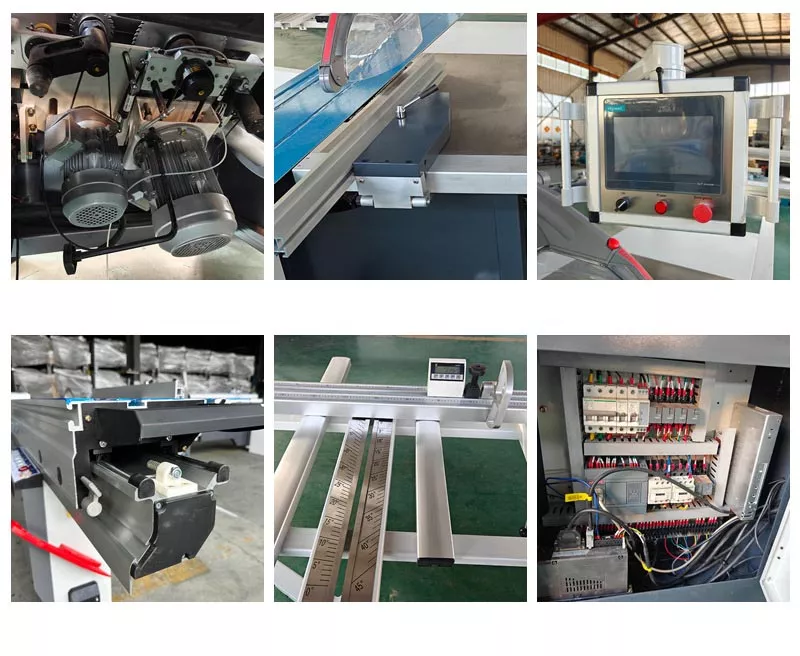

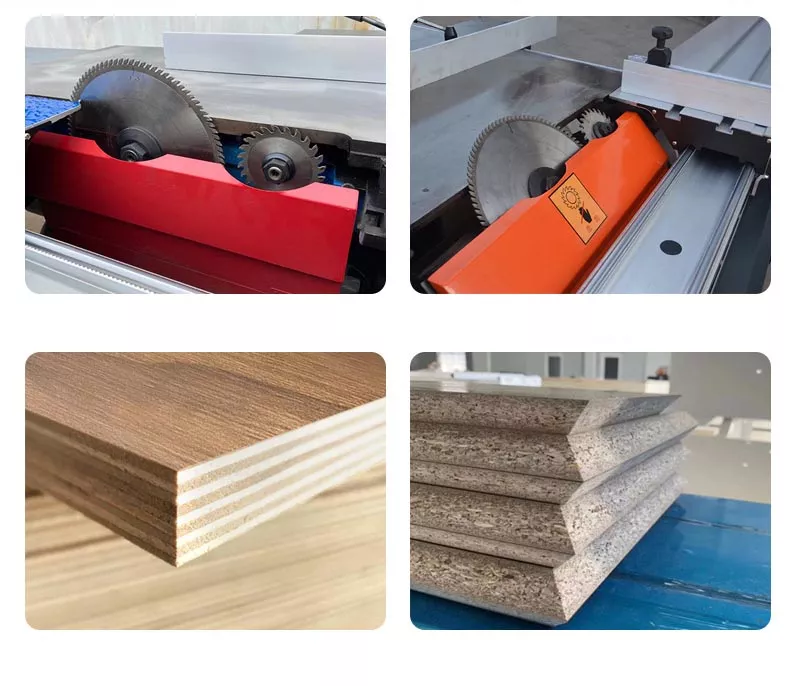

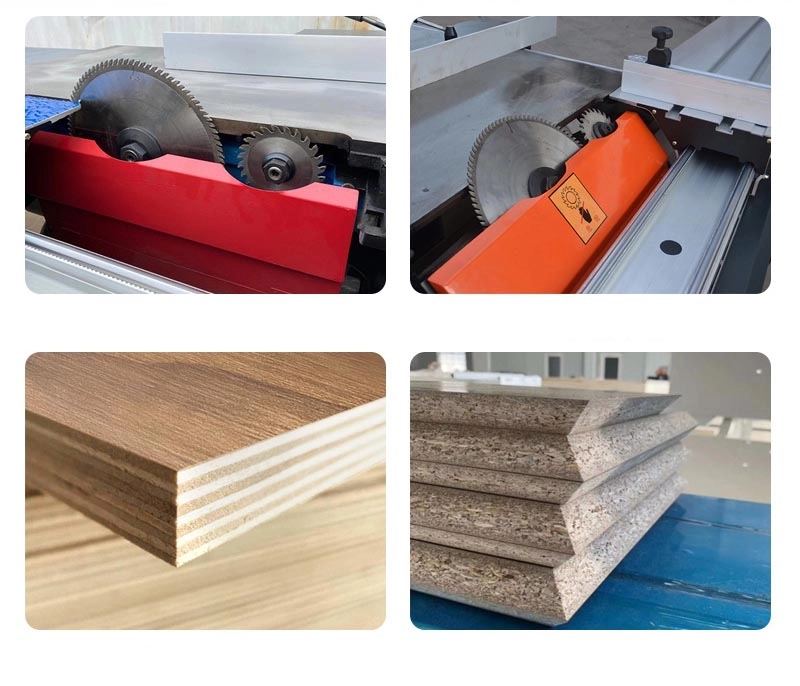

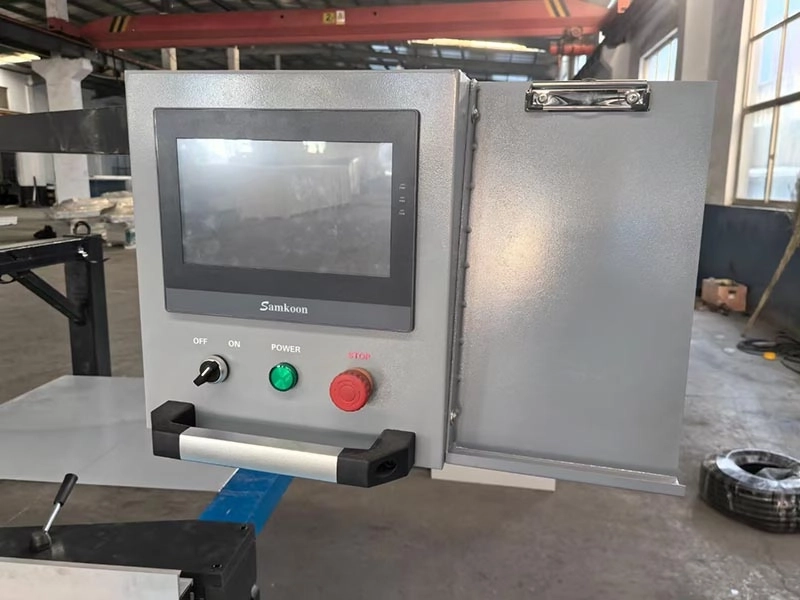

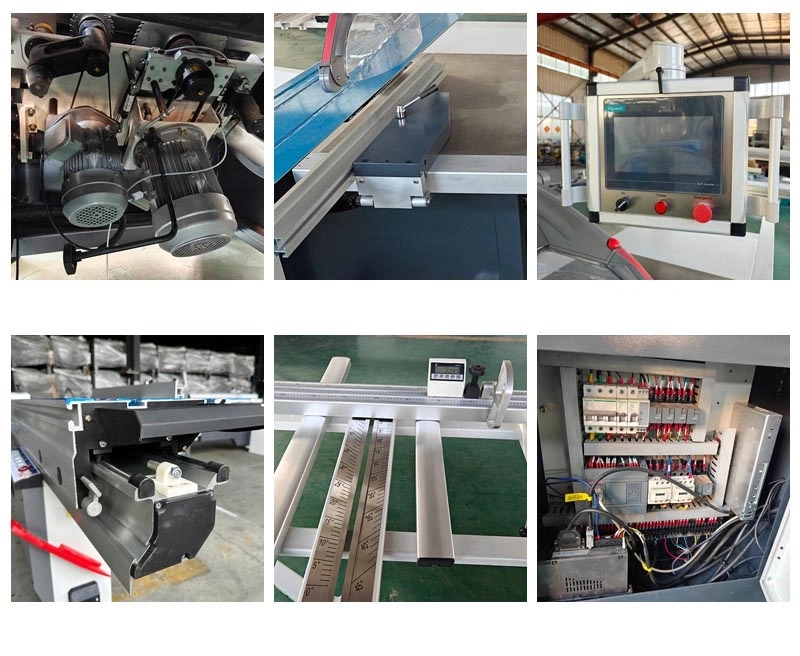

The fully automatic CNC sliding table saw is designed for high-precision panel cutting in woodworking and industrial applications. Equipped with electric lifting and tilting, digital angle display, and CNC control, this multi-functional precision saw offers efficient and accurate cutting of wood panels, MDF, aluminum honeycomb panels, and wooden doors. Ideal for furniture manufacturing and panel processing, it delivers smooth operation, reliable performance, and exceptional cutting results.
