300C/400C woodworking combined planer with 3 functions 300/400mm Width Wood Thicknesser Planer
- Quantity
300C/400C woodworking combined planer with 3 functions 300/400mm Width Wood Thicknesser Planer
|
Planer |
300C |
400C |
|
Working Table |
300*1500 mm |
400*1800mm |
|
Cutter block diameter |
70 mm |
70mm |
|
Cutter block rotation speed |
5700 r. p. m |
5700 r. p. m |
|
Dimension knives(3 knives) |
300*20*3 mm |
400*20*3 mm |
|
Max table adjustment |
4 mm |
4mm |
|
Thickness |
300C |
400C |
|
Working Table |
300*660 mm |
400*760 |
|
Feeding Speed |
7 m/1’ |
7m/1’ |
|
Working Height |
4-220 mm |
4-220 mm |
|
Max. Cutting depth |
4mm |
4mm |
|
Mortiser |
300C |
400C |
|
Working Table |
250*500 mm |
250*500mm |
|
Longitudinal /Trasversal /Vertical Stroke |
205/95/90 mm |
205/95/90mm |
|
Churck ( M18*1.5-S) |
0-16 mm |
0~16mm |
|
Weight |
290kg |
385kg |
|
3-phase motor |
3.0 HP/2.2KW |
5.5HP/3kw |
|
Single-phase motor |
4.0 HP/3 KW |
4.0HP/3kw |

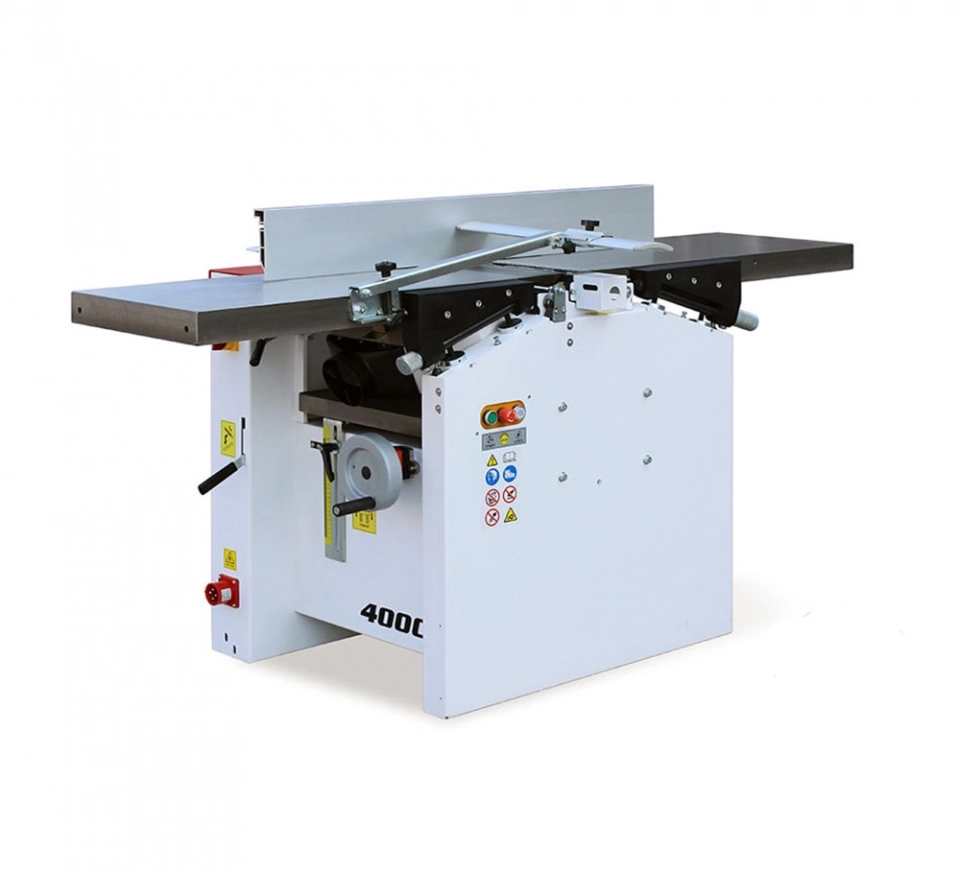

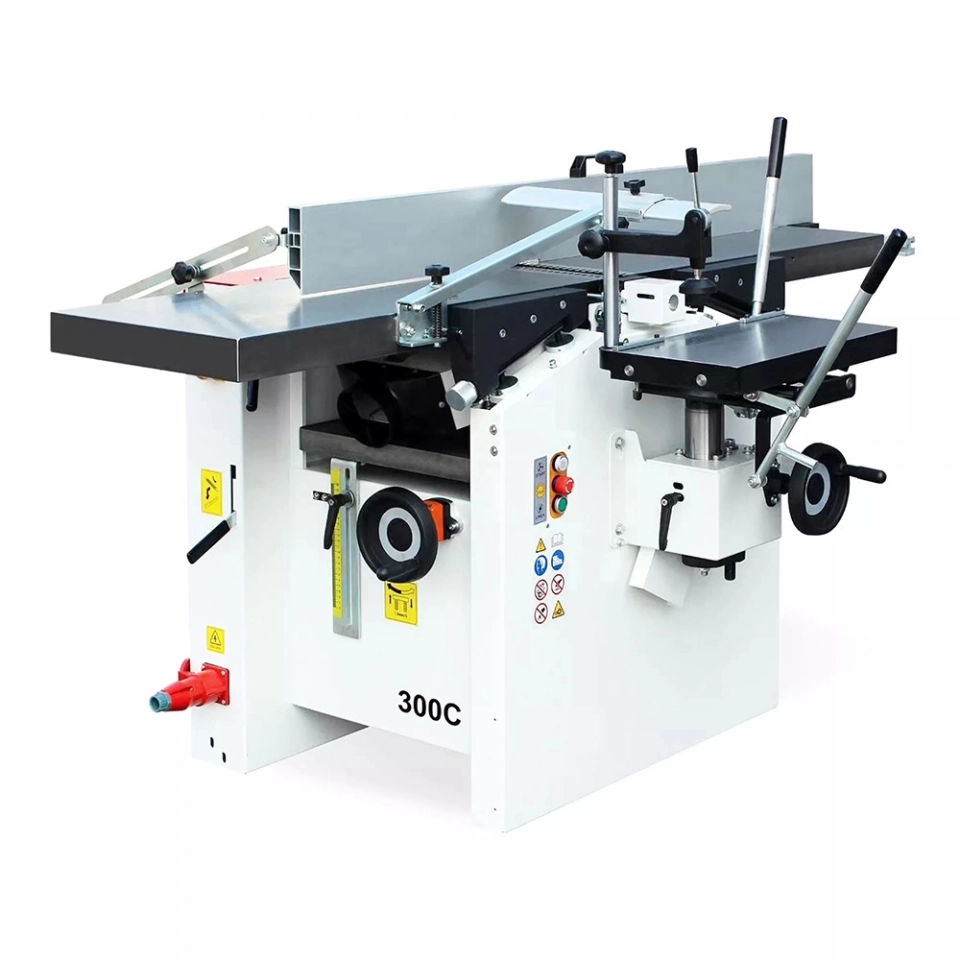

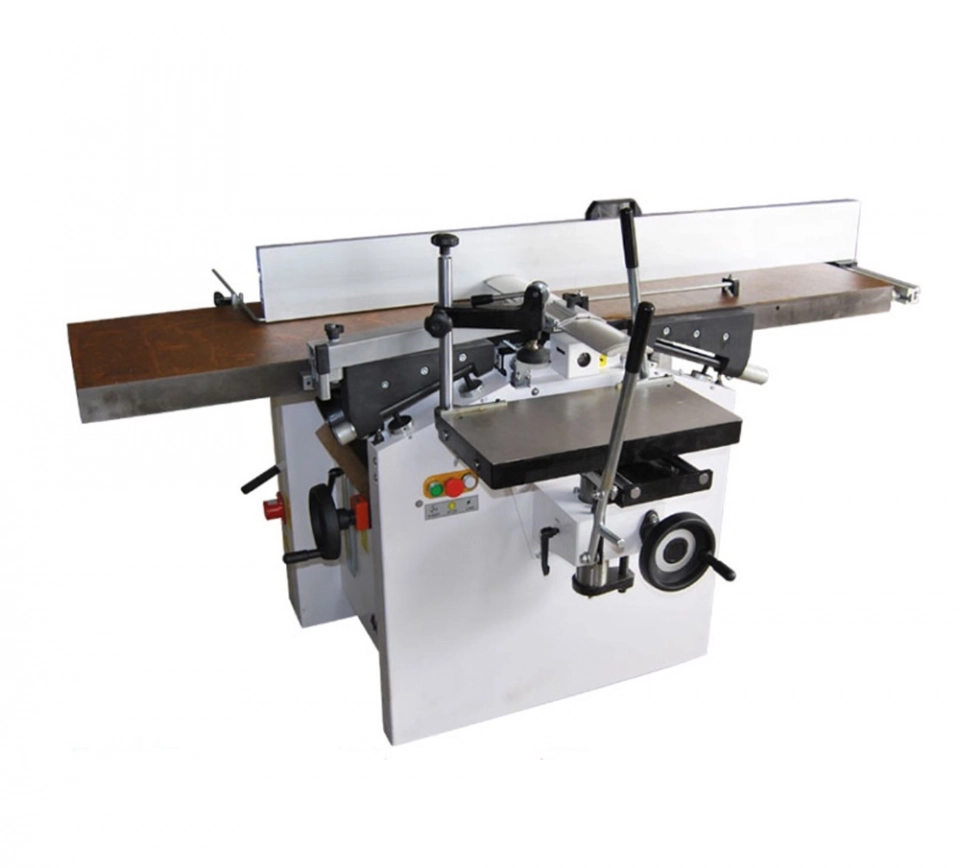

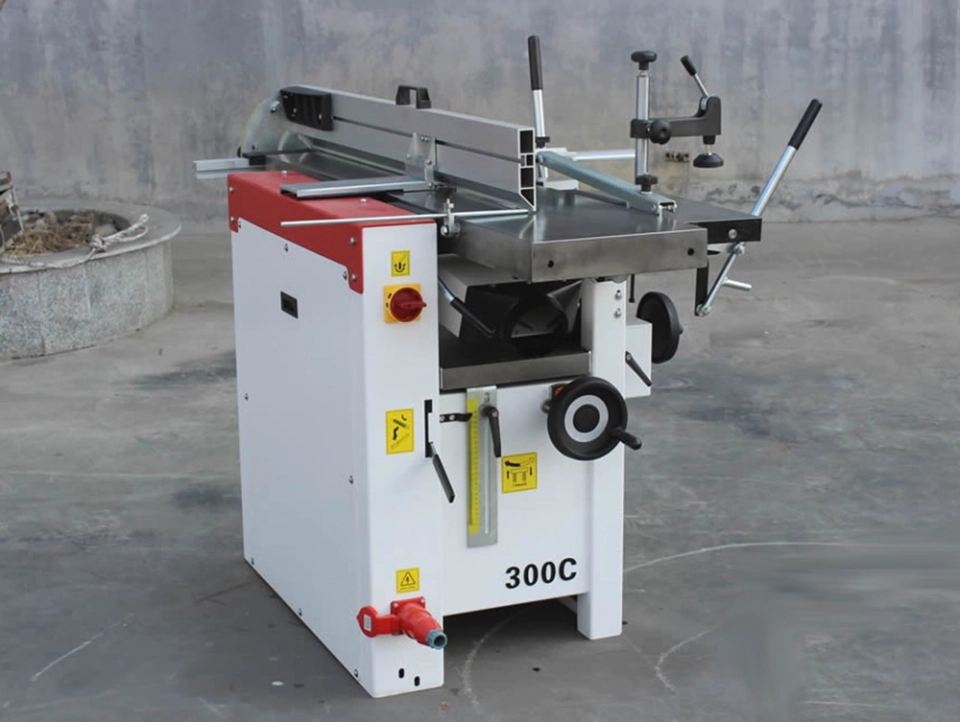

300C/400C woodworking combined planer with 3 functions 300/400mm Width Wood Thicknesser Planer

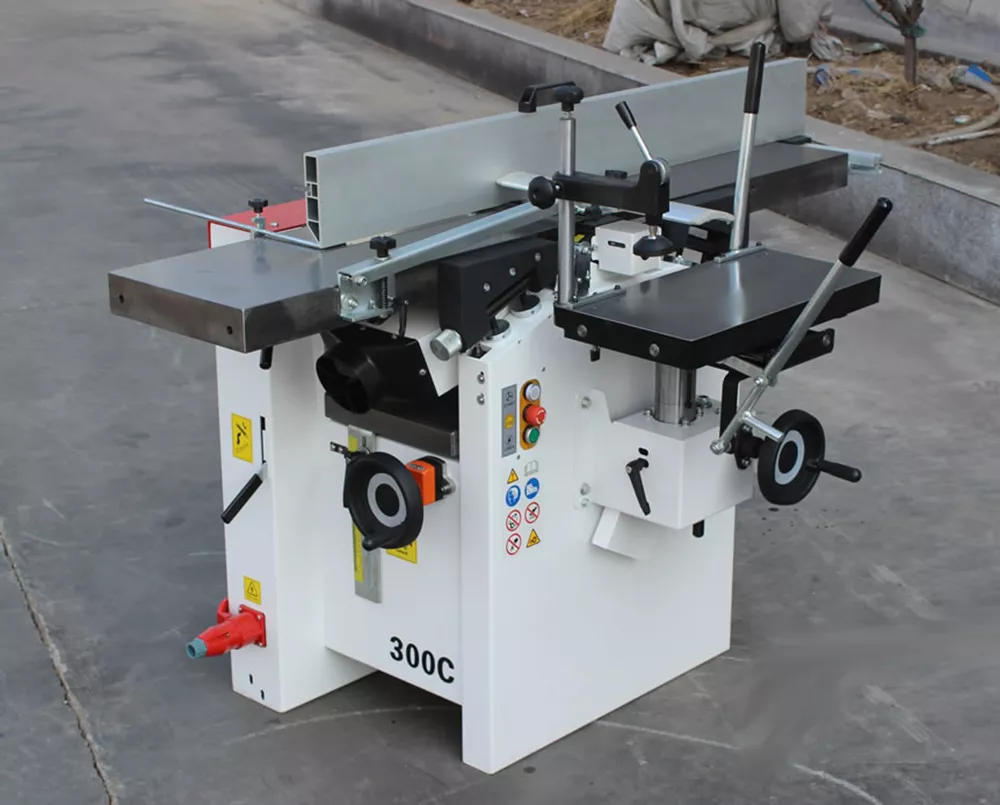

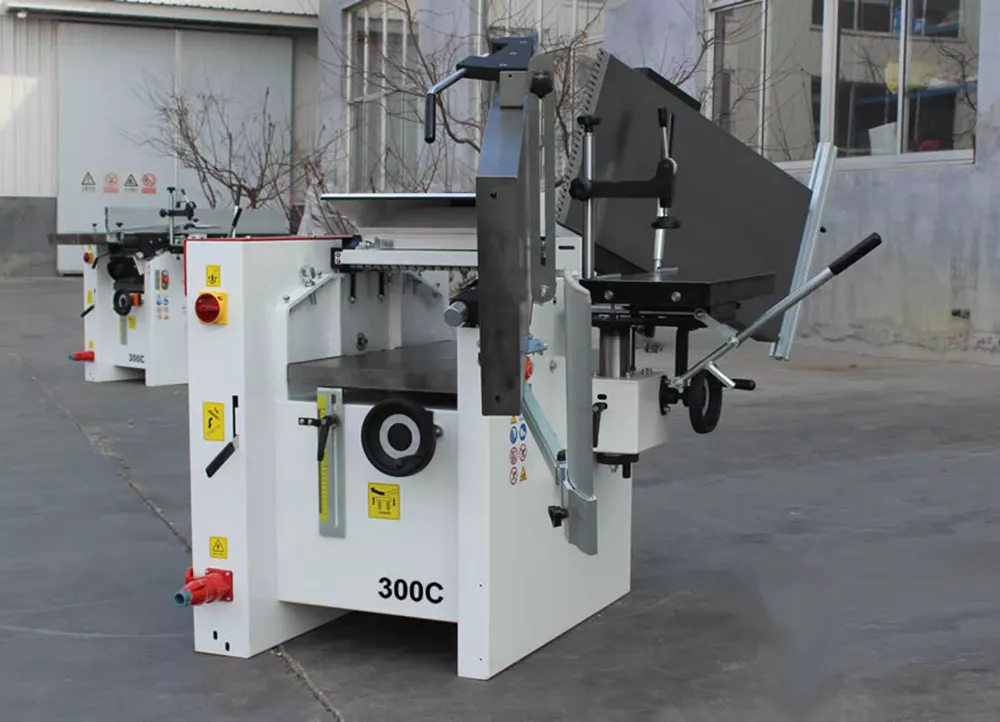

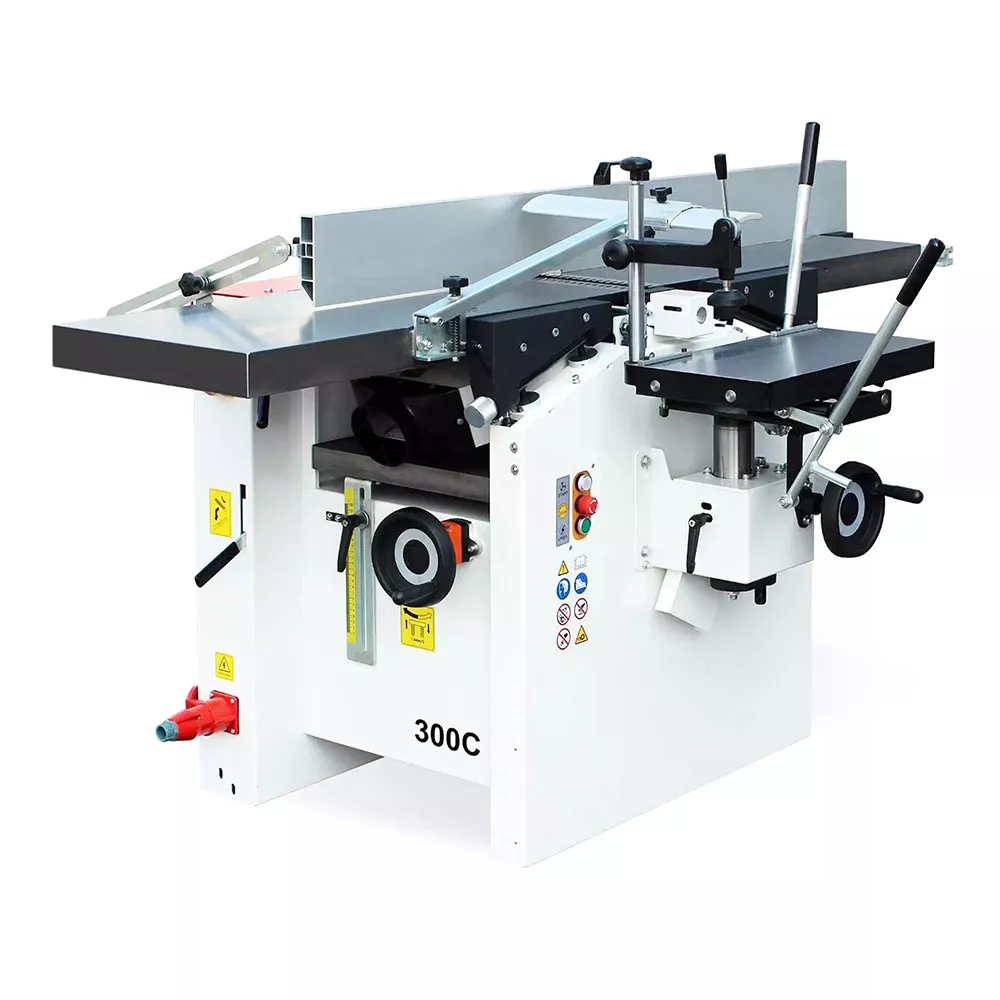

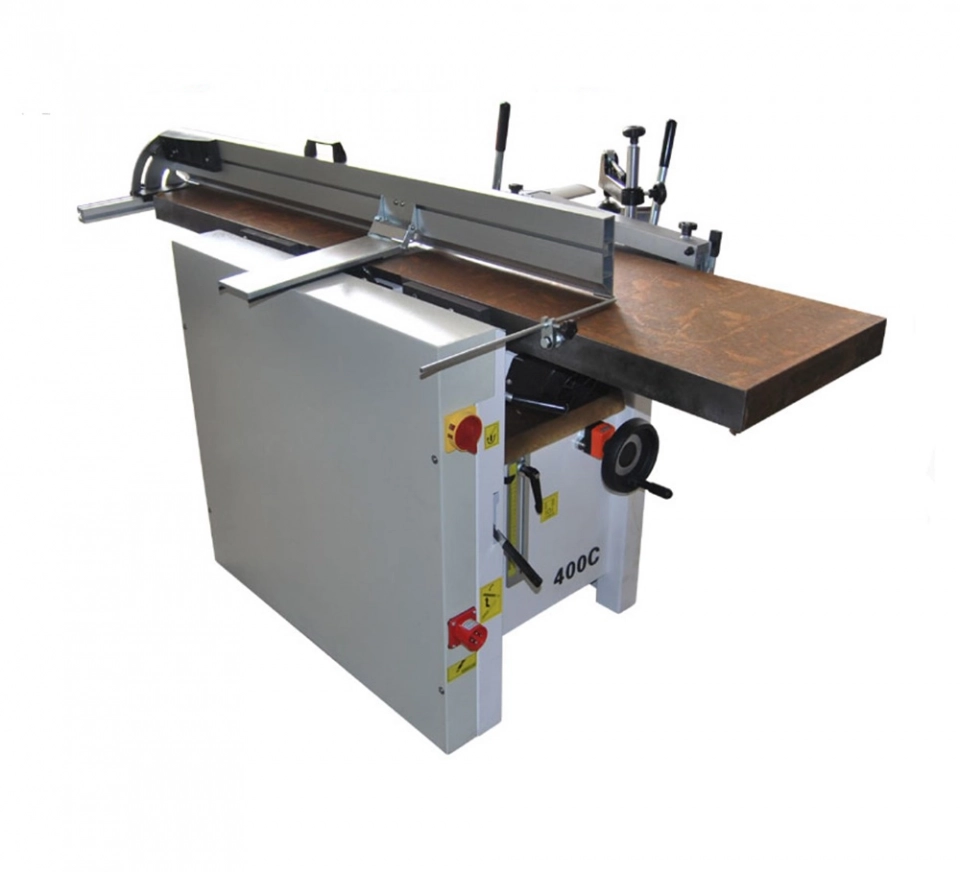

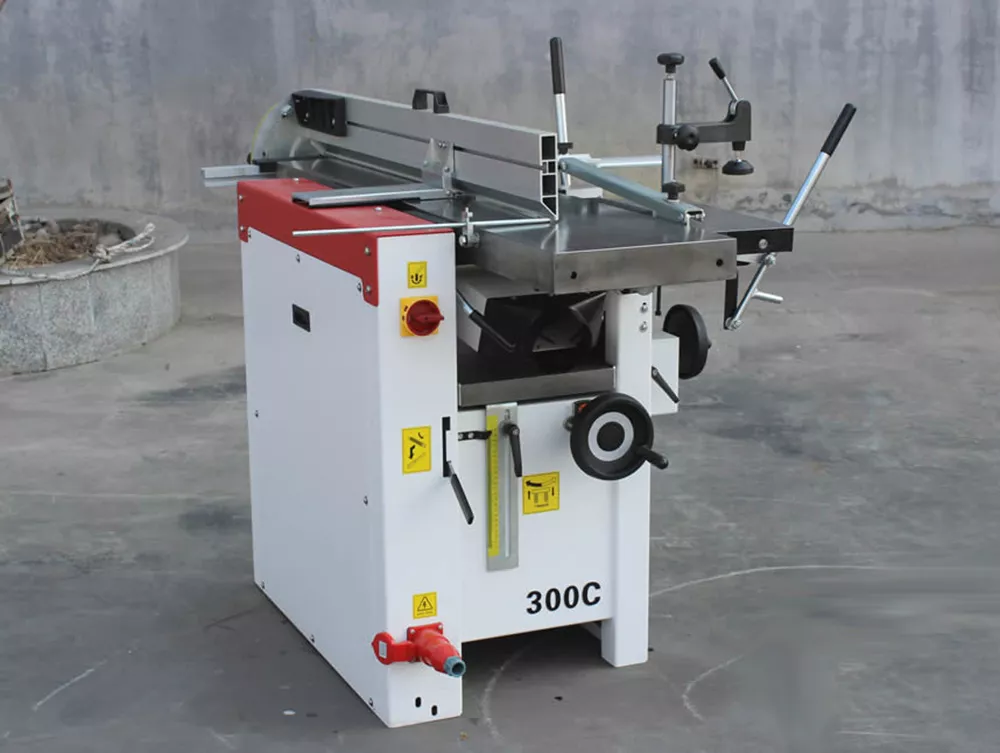

300C/400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop.

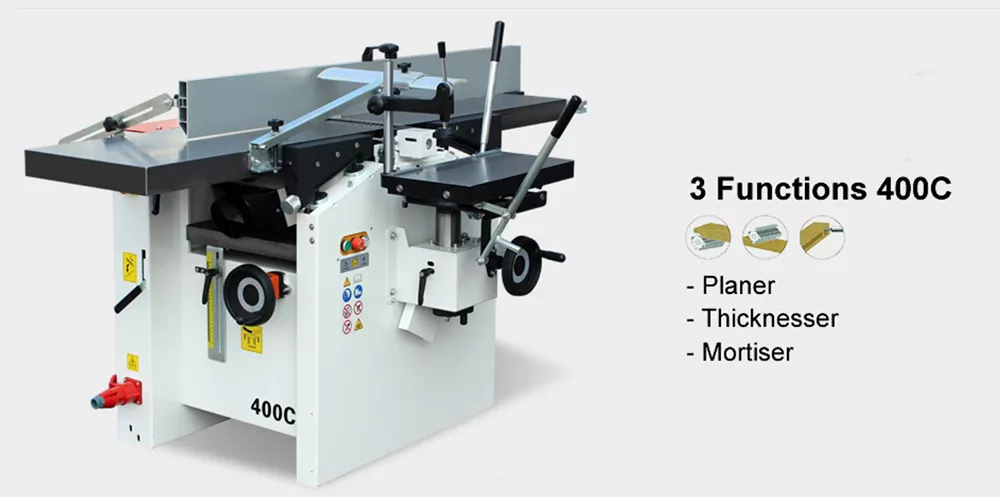

This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime.

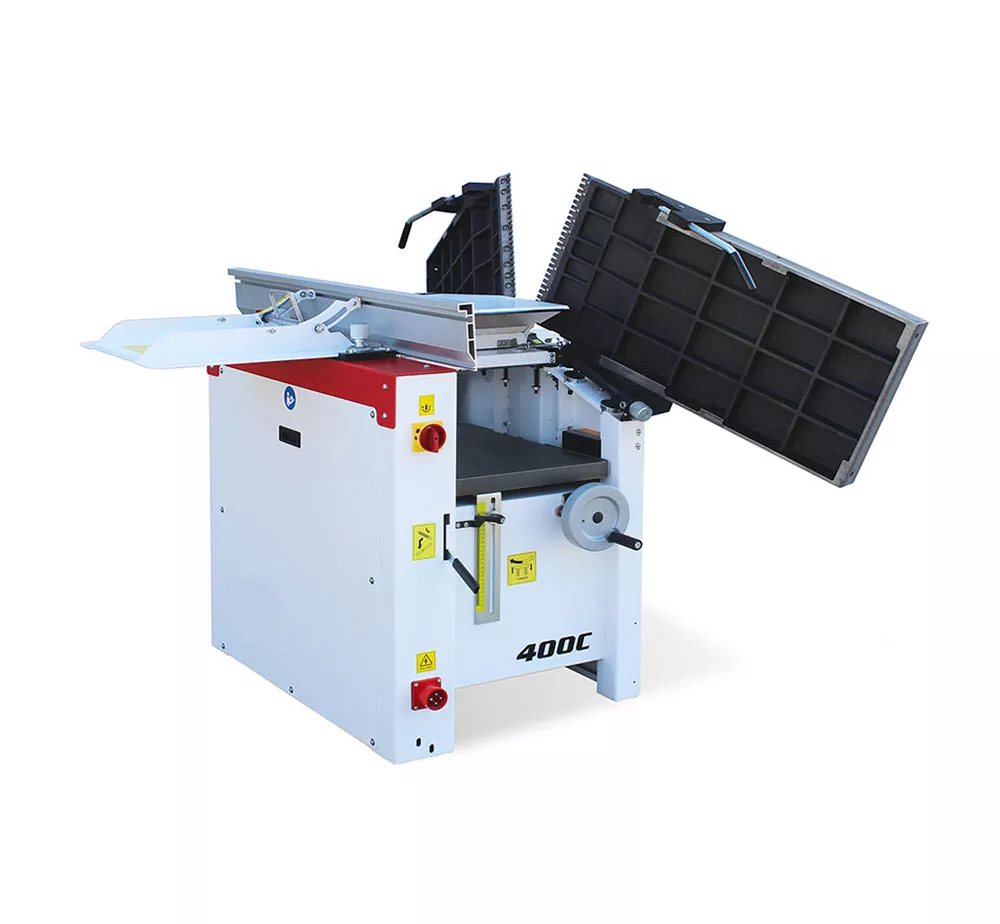

The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.

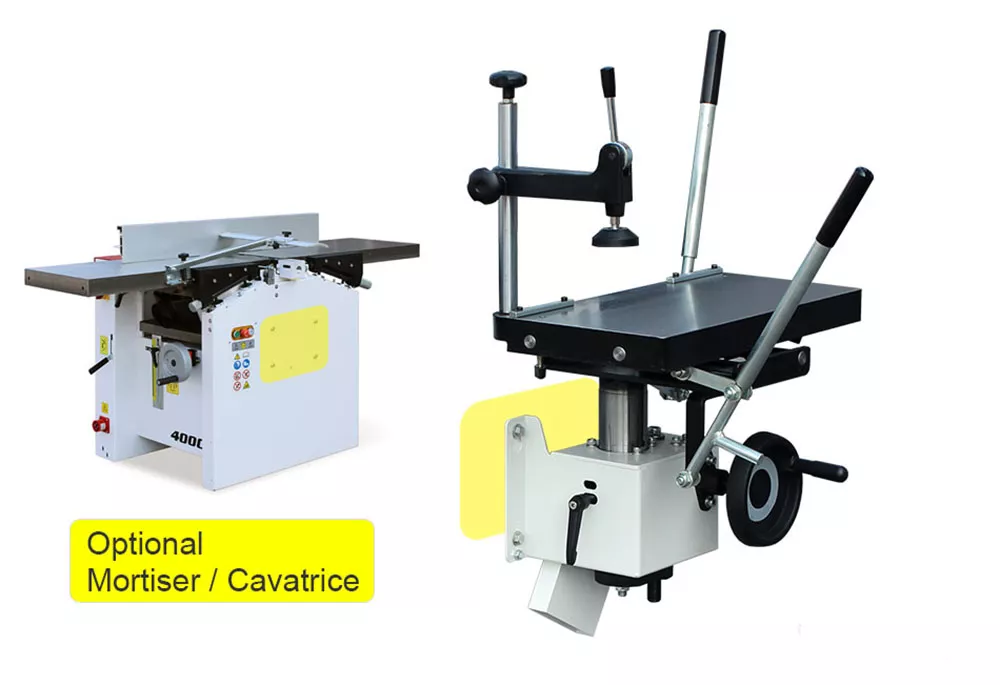

Several further options are also available, each machine can therefore be tailored to the users specific needs.
