ZX368 Semi automatc edge banding machine
- Quantity
ZX368 Semi automatc edge banding machine
|
Product name |
Semi-automatic single/double edge banding machine + slotting |
|
Edge banding height |
12~60mm |
|
Edge banding thickness |
0.4~3mm |
|
Wood plate thickness |
10~55mm |
|
Feeding speed |
1m/min |
|
Min. width of workpiece |
80mm |
|
Min. length of workpiece |
80mm |
|
Conveyor belt motor power |
1.5kw |
|
Head motor power |
0.37kw*2 12000r/min |
|
Refined edge motor power |
0.75kw*2 18000r/min |
|
Polishing motor power |
0.18kw*2 14000r/min |
|
Total power |
7.1kW |
|
Air pressure |
0.6~0.8Mpa |
|
Application |
Panel furniture production |
|
Dimension |
2500*800*1500mm |
|
Weight |
800kg |
ZX368 Semi automatc edge banding machine

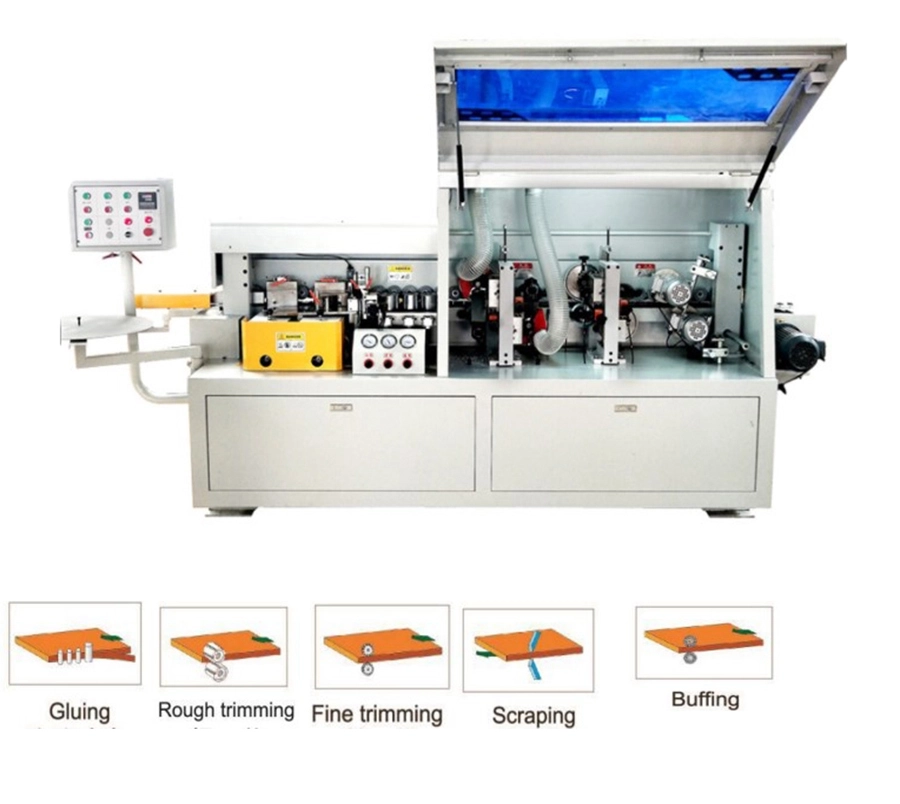

The main functions of the edge banding machine: glue, press, finish, scrape, polish. Mainly used for edge sealing of panel furniture. It is characterized by automation, high efficiency, high precision and aesthetics, and is widely used in the production of panel furniture.
