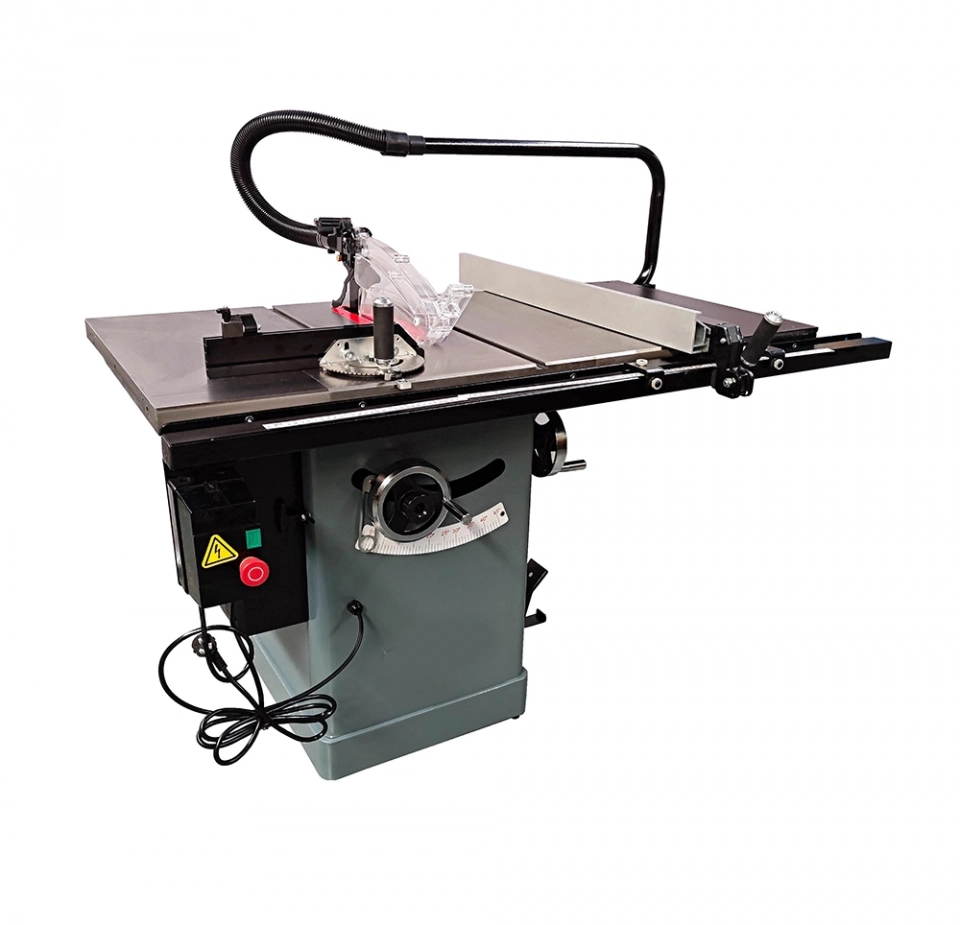

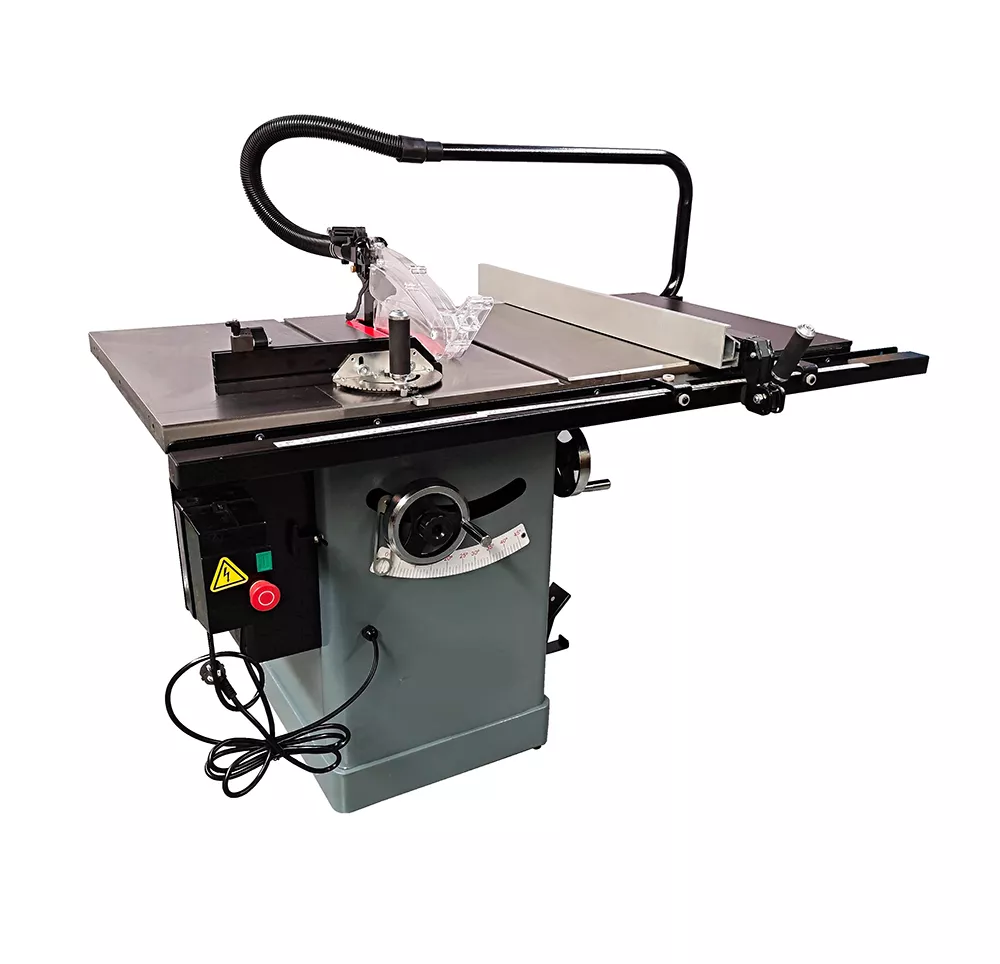

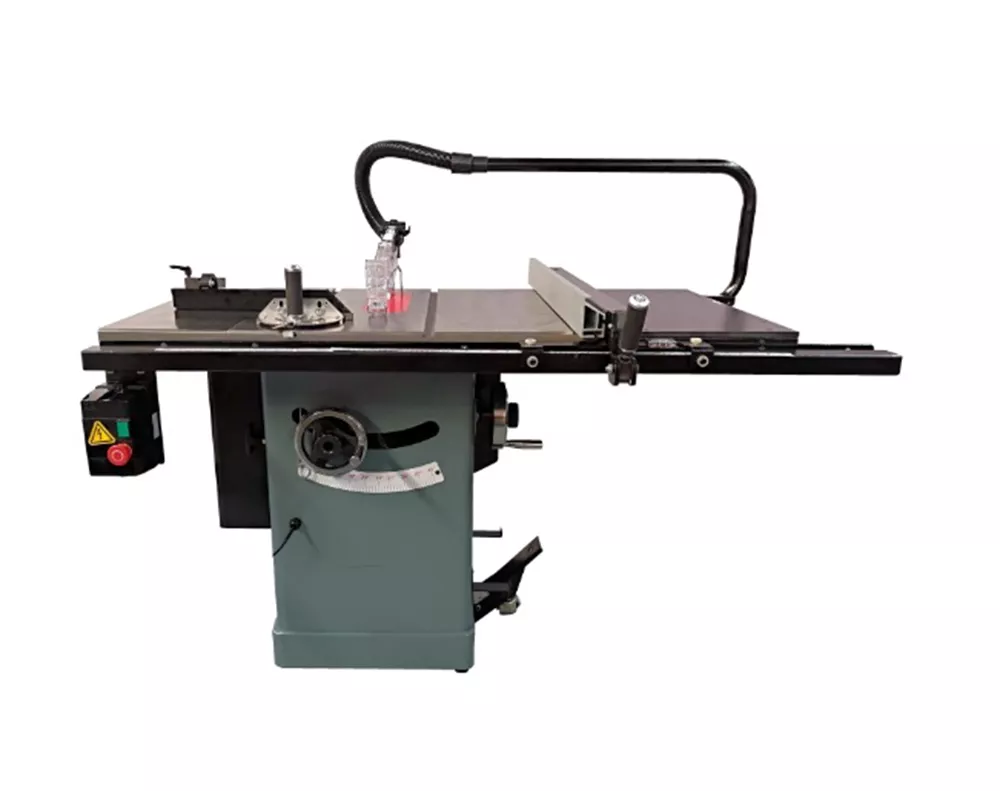

W0708 10 Inch Cast Iron Precision Table Saw Induction Motor sliding table saw

Power

2800w

Saw blade diameter

254mm

Saw shaft diameter

15.88mm

Saw shaft speed

4100rpm

Dado maximum width

20.6mm

Dado maximum diameter

200mm

90° maximum cutting height

76mm

45°Maximum cutting height

54mm

Saw blade tilt direction

left tilt

Maximum slitting depth on the right side

762mm

The maximum slitting width on the left side of the saw blade

520mm

Dimensions of cast iron main table

685*512mm

Dimensions of cast iron workbench (with two cast iron extension tables)

685*1020mm

Dimensions of the complete workbench (cast iron extension table + 30” bakelite extension table)

685*1360mm

Diameter of outer suction port

100mm

Inner suction port diameter

40mm

Maximum dimensions

1560*1040*1250mm

Net/Gross

180/220kg

Outer box size

1/2:790*730*1040mm

2/2: 1700*380*250mm
