MB102/MB103/MB104 200/300/400mm single side high speed plane wood planer machine woodworking wood thickness planer
- Quantity
MB102/MB103/MB104 200/300/400mm single side high speed plane wood planer machine woodworking wood thickness planer
|
Model |
MB102 |
MB103 |
MB104 |
|
Planing width |
198mm |
300mm |
400mm |
|
Planing thickness |
3~95mm |
3~130mm |
5~130mm |
|
Min. Planing length |
150mm |
150mm |
180mm |
|
Max. Planing depth |
3mm |
3mm |
3mm |
|
Motor power |
2.2kw |
3kw |
4kw |
|
Dimension (mm) |
530*500*1100 |
610*580*1100 |
710*680*1100 |
|
Weight(kg) |
200 |
250 |
300 |
MB102/MB103/MB104 200/300/400mm single side high speed plane wood planer machine woodworking wood thickness planer

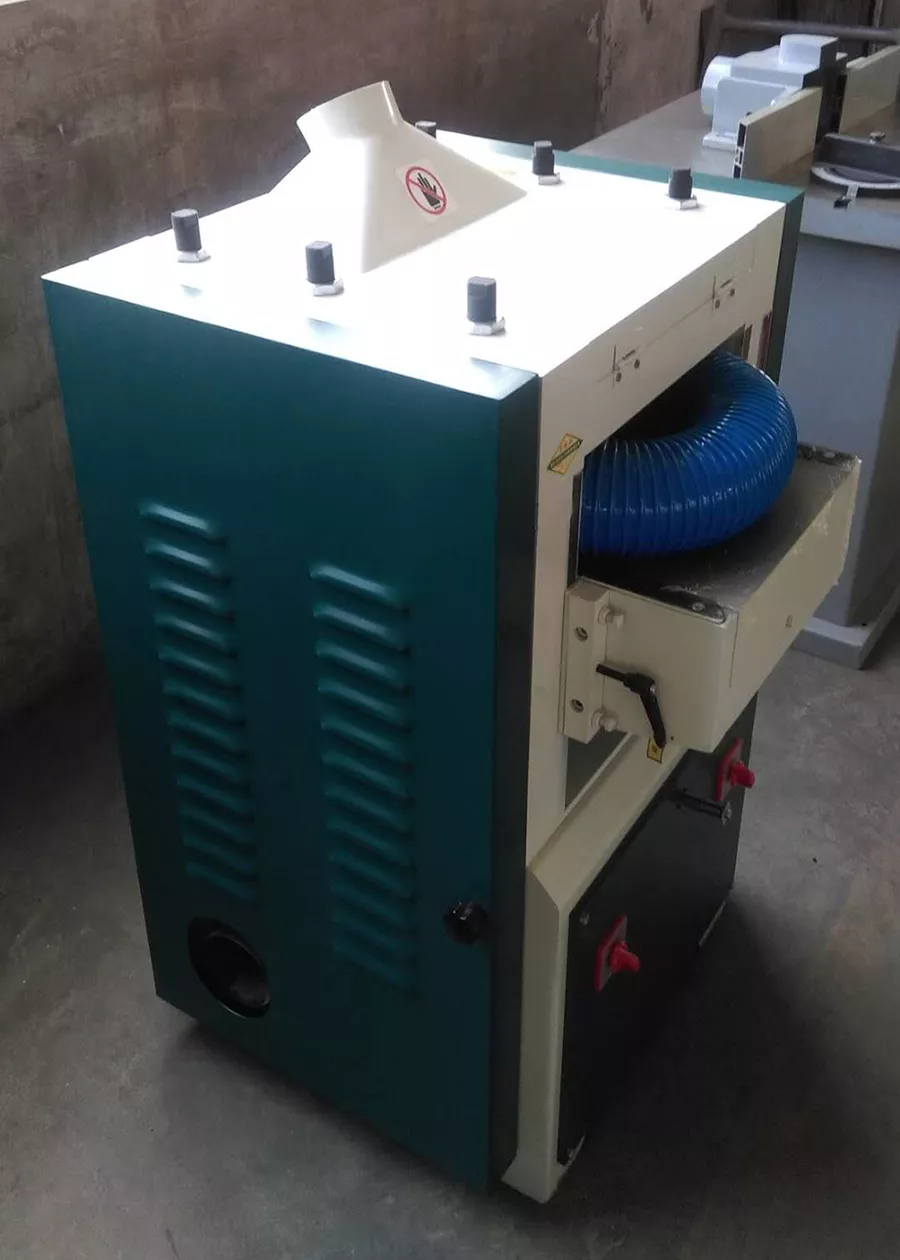

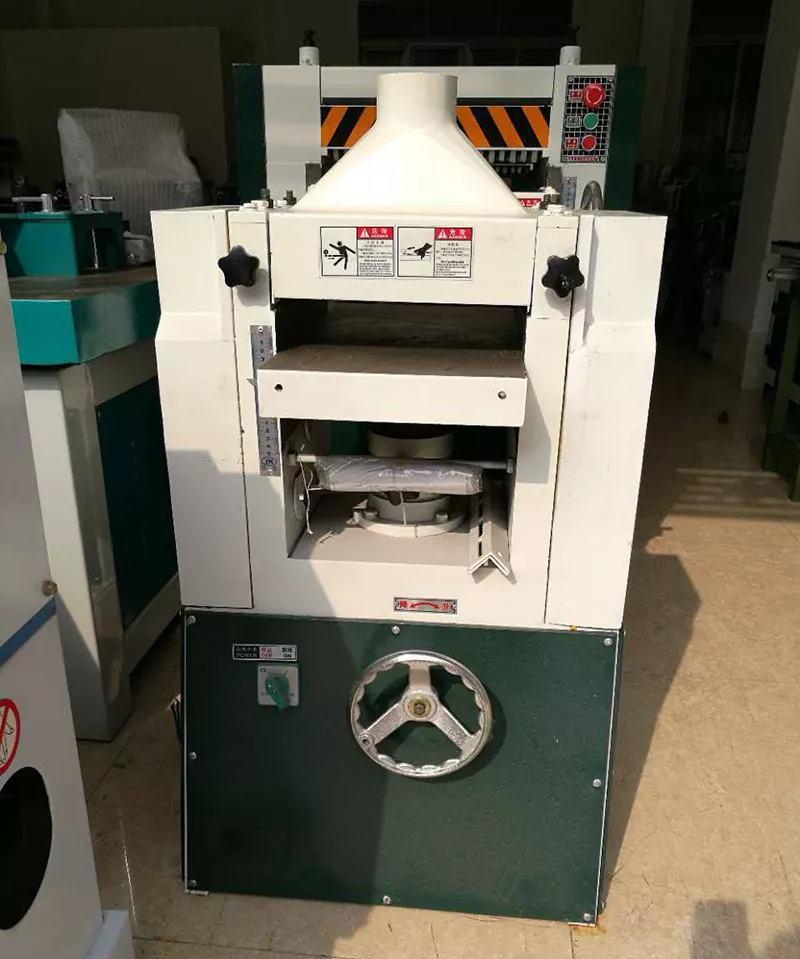

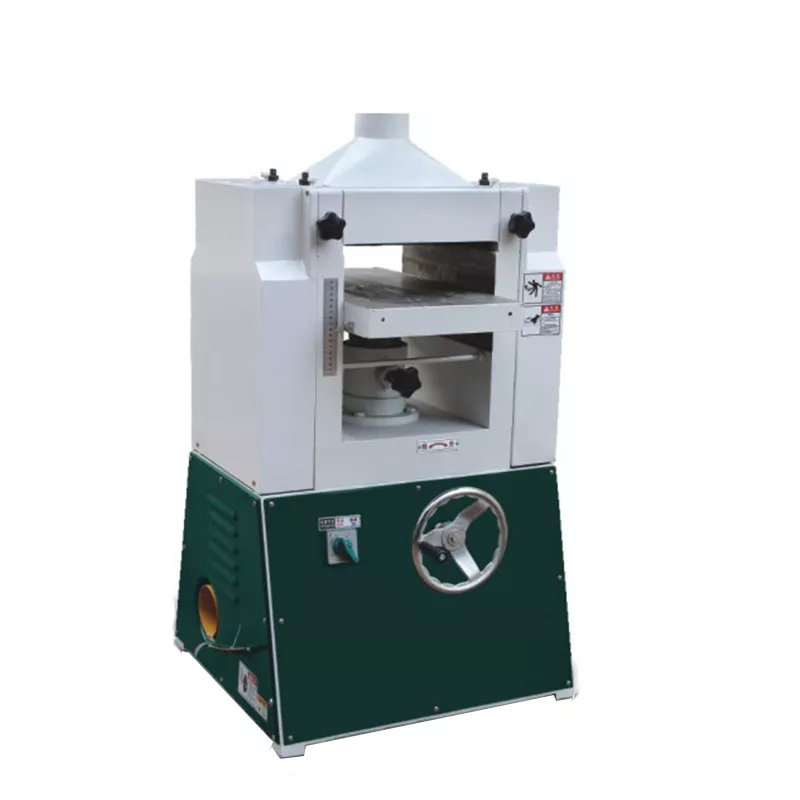

High-Speed Single-Surface Planer
The high-speed single-surface planer boasts several outstanding features: precision machining, low noise, energy efficiency, and ease of use. Its robust cast-iron construction ensures a safe and reliable structure,

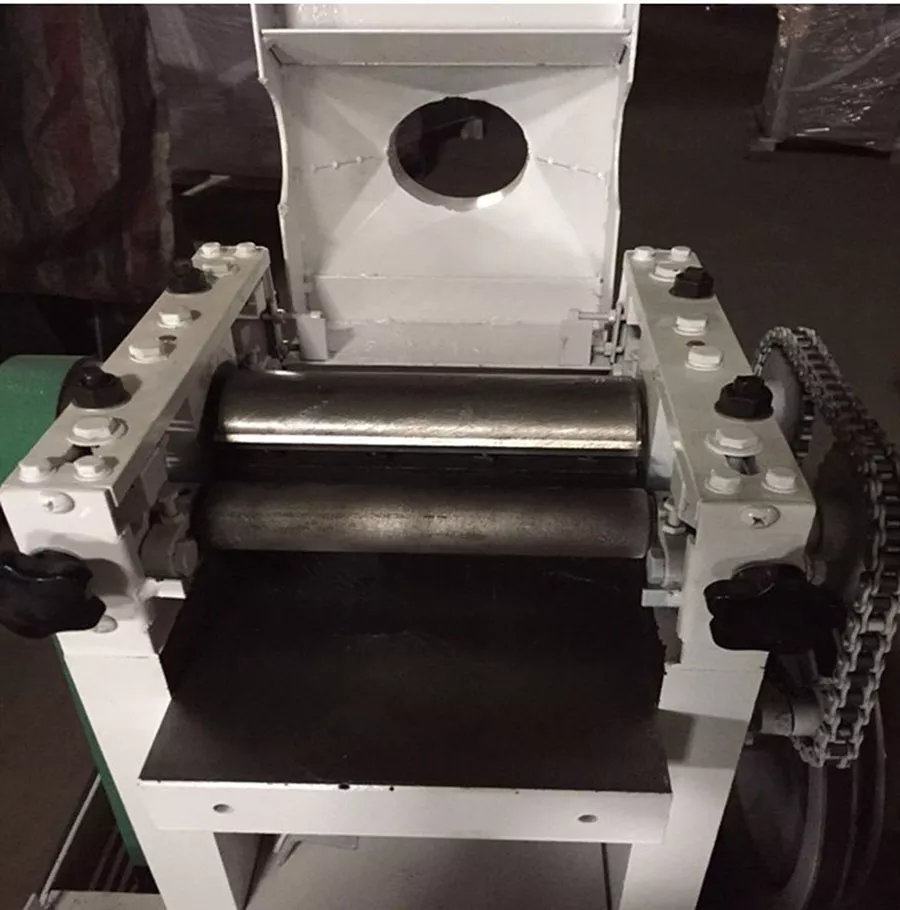

along with easy maintenance and long service life. The planer is designed for stable operation with a sleek and modern appearance. The segmented feed roller allows adjustable thickness for different board materials,
making it highly versatile. With high-speed energy-saving performance, it is ideal for continuous operation.
